The Influence of Building’s Orientation on the Overall Thermal Performance

Aiman Albatayneh (1), Sulaiman Mohaidat (2), Atif Alkhazali (3), Zakariya Dalalah (4), Mathhar Bdour (5)
(1) Energy Engineering Department, School of Natural Resources Engineering and Management, German Jordanian University, Amman Jordan., Jordan,
(2) Engineering Department, Jordan University of Science and Technology, Irbid Jordan,
(3) Industrial Engineering, Faculty of Engineering, the Hashemite University, Zarqa Jordan, Jordan,
(4) Energy Engineering Department, School of Natural Resources Engineering and Management, German Jordanian University, Amman Jordan., Jordan,
(5) Energy Engineering Department, School of Natural Resources Engineering and Management, German Jordanian University, Amman Jordan.

Abstract

Containing and then reducing greenhouse gas (GHG) emissions require designing energy efficient buildings which save energy and emit less GHG. Orientation has an impact on the building’s overall thermal performance and designing heating and cooling to reach occupants’ thermal comfort.

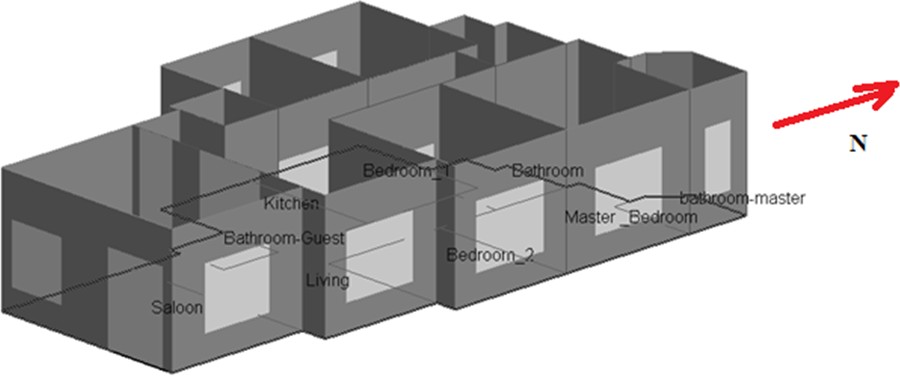

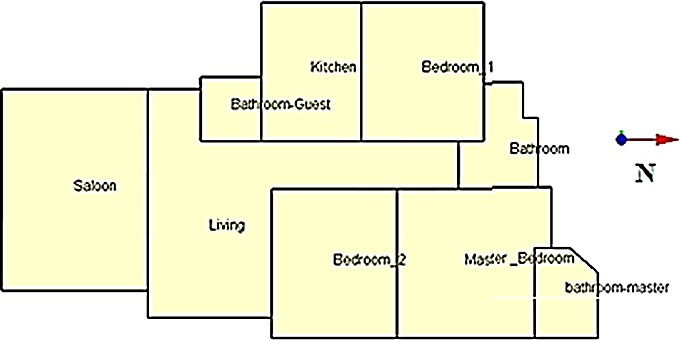

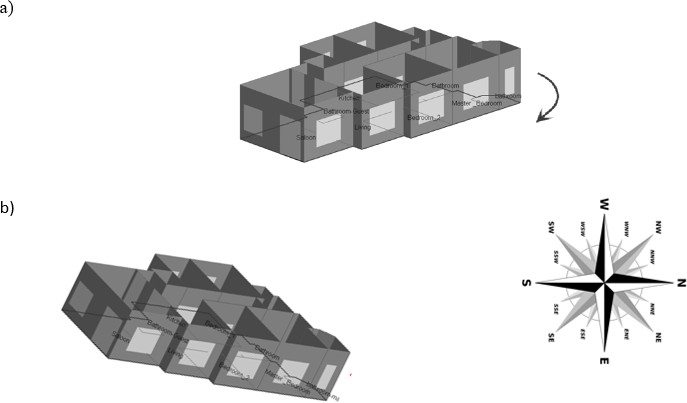

Correct orientation is a low cost option to improve occupant's thermal comfort and decrease cooling and heating energy. An appropriate building orientation will allow the desirable winter sun to enter the building and allow ventilation in the summer by facing the summer wind stream. In this paper, a building module in Jordan will be assessed using Design Builder Simulation packages to find the effect of the building orientation on the overall thermal performance.

It was found that the larger windows should be in the southern walls in the northern hemisphere to provide the most heat to the building through the window which allows the sun in winter to enter the building and heat it up. This will reduce the amount required for heating by approximately 35% per annum.

Full text article

Generated from XML file

References

Laustsen, J. (2008). Energy efficiency requirements in building codes, energy efficiency policies for new buildings. International Energy Agency (IEA), 2(8), 477-488.

United Nations Environment Programme (UNEP). (2009). Buildings US, Construction Initiative. Common Carbon Metric for Measuring Energy Use & Reporting Greenhouse Gas Emissions from Building Operations.

Holmes, M. J., & Hacker, J. N. (2007). Climate change, thermal comfort and energy: Meeting the design challenges of the 21st century. Energy and Buildings, 39(7), 802-814.

Florides, G. A., Tassou, S. A., Kalogirou, S. A., & Wrobel, L. C. (2002). Measures used to lower building energy consumption and their cost effectiveness. Applied Energy, 73(3-4), 299-328.

Jordan Ministry of energy and mineral resources, (JMEMR) (2018). Jordan Ministry of energy and mineral resources, (JMEMR). [online] Petroleum and Oil Shale Projects. Available at: http://www.memr.gov.jo/Pages/viewpage.aspx?pageID=202. [Accessed 31 Jul. 2018].

Pearlmutter, D., & Meir, I. A. (1995). Assessing the climatic implications of lightweight housing in a peripheral arid region. Building and Environment, 30(3), 441-451.

Mohammad, S., & Shea, A. (2013). Performance evaluation of modern building thermal envelope designs in the semi-arid continental climate of Tehran. Buildings, 3(4), 674-688.

Albatayneh, A., Alterman, D., Page, A., & Moghtaderi, B. (2016). Assessment of the thermal performance of complete buildings using adaptive thermal comfort. Procedia-Social and Behavioral Sciences, 216, 655-661.

Albatayneh, A., Alterman, D., Page, A., & Moghtaderi, B. (2017). The Significance of Temperature Based Approach Over the Energy Based Approaches in the Buildings Thermal Assessment. Environmental and Climate Technologies, 19(1), 39-50.

Albatayneh, A., Alterman, D., Page, A., & Moghtaderi, B. (2017). Thermal Assessment of Buildings Based on Occupants Behavior and the Adaptive Thermal Comfort Approach. Energy Procedia, 115, 265-271.

Albatayneh, A., Alterman, D., Page, A., & Moghtaderi, B. (2015). The significance of time step size in simulating the thermal performance of buildings. Advances in Research, 5(6), 2348-0394.

Albatayneh, A., Alterman, D., Page, A. W., & Moghtaderi, B. (2016). Warming issues associated with the long term simulation of housing using CFD analysis. Journal of Green Building, 11(2), 57-74.

Albatayneh, A., Alterman, D., Page, A., & Moghtaderi, B. (2017). Discrepancies in Peak Temperature Times using Prolonged CFD Simulations of Housing Thermal Performance. Energy Procedia, 115, 253-264.

Gerber, M. (2014). EnergyPlus Energy Simulation Software.

Spanos I, Simons M, Holmes KL. (2005). Cost savings by application of passive solar heating. Structural Survey. 1;23(2):111-30.

Morrissey, J., Moore, T., & Horne, R. E. (2011). Affordable passive solar design in a temperate climate: An experiment in residential building orientation. Renewable Energy, 36(2), 568-577.

Authors

Aiman Albatayneh
[email protected] (Primary Contact)
Sulaiman Mohaidat
Atif Alkhazali
Zakariya Dalalah
Mathhar Bdour
Author Biographies

Aiman Albatayneh, Energy Engineering Department, School of Natural Resources Engineering and Management, German Jordanian University, Amman Jordan.

Energy Engineering Department, School of Natural Resources Engineering and Management, German Jordanian University, Amman Jordan.

Sulaiman Mohaidat, Engineering Department, Jordan University of Science and Technology, Irbid Jordan

Engineering Department, Jordan University of Science and Technology, Irbid Jordan

Atif Alkhazali, Industrial Engineering, Faculty of Engineering, the Hashemite University, Zarqa Jordan

Industrial Engineering, Faculty of Engineering, the Hashemite University, Zarqa Jordan

Zakariya Dalalah, Energy Engineering Department, School of Natural Resources Engineering and Management, German Jordanian University, Amman Jordan.

Energy Engineering Department, School of Natural Resources Engineering and Management, German Jordanian University, Amman Jordan.

Mathhar Bdour, Energy Engineering Department, School of Natural Resources Engineering and Management, German Jordanian University, Amman Jordan.

Energy Engineering Department, School of Natural Resources Engineering and Management, German Jordanian University, Amman Jordan.
Albatayneh, A., Mohaidat, S., Alkhazali, A., Dalalah, Z., & Bdour, M. (2018). The Influence of Building’s Orientation on the Overall Thermal Performance. Environmental Science & Sustainable Development, 3(1), 63–69. https://doi.org/10.21625/essd.v3iss1.276

Article Details

Received 2018-07-31
Accepted 2018-07-31
Published 2018-07-31
