Cool Clay Tiles in Italian Residential Districts: Investigation of the Coupled Thermal-Energy and Environmental Effects

Anna Laura Pisello, Veronica Lucia Castaldo, Federico Rossi, Franco Cotana

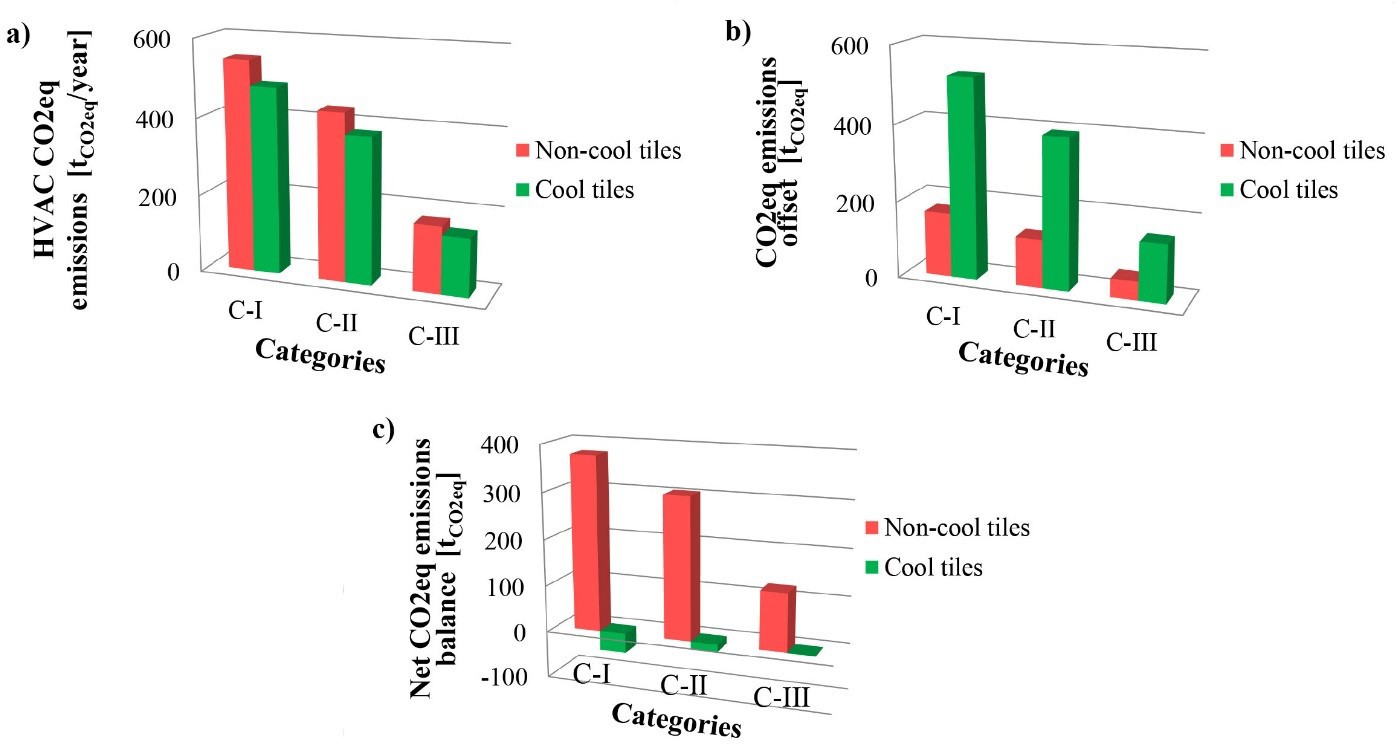

Passive strategies for environmental sustainability and energy reduction in the construction industry are becoming increasingly important in, both, the scientific community and the industrial world. Particularly, cool roofs demonstrate acknowledged contribution in cooling energy saving and reducing urban overheating such as urban heat island. Additionally, high albedo strategy has shown promising benefits from a global perspective by counteracting global warming measured by means of CO2eq emission offset. In this view, the present research work combines experimental, numerical, and analytical analysis approaches to measure the impact on energy and the environment from the application of cool clay tiles over the roof of a residential buildings located in central Italy, consistently monitored since 2010. The purposeful investigation demonstrated a consistent CO2 emission compensation of more than 700 tons, 15% of which is produced by the passive cooling contribution of buildings and climate mitigation techniques. The work, therefore, indicated that local energy saving strategies must be combined with larger scale models for performing an exhaustive environmental analysis.

Keywords

Global Warming; Cool roof; Dynamic simulation; Building energy efficiency; Albedo; Urban Heat Island; Cool clay tile.

References

Akbari, H., Menon, S., & Rosenfeld, A. (2008). Global cooling: Increasing world-wide urban albedos to offset CO2. Climatic Change, 94(3-4), 275-286. doi:10.1007/s10584-008-9515-9

Annual Energy Outlook 2011 With Projections to 2035. (2011). Washington: Us Energy Information Adminisitration: Dept of Energy. Retrieved from https://www.eia.gov/outlooks/aeo/pdf/0383(2011).pdf

Ashrae guideline: Measurement of energy and demand savings. (2002). Atlanta, GA: ASHRAE. Retrieved from http://www.eeperformance.org/uploads/8/6/5/0/8650231/ashrae guideline 14-2002 measurement of energy and demand saving.pdf

Cotana, F., Rossi, F., Filipponi, M., Coccia, V., Pisello, A. L., Bonamente, E., . . . Cavalaglio, G. (2014). Albedo control as an effective strategy to tackle Global Warming: A case study. Applied Energy, 130, 641-647. doi:10.1016/j.apenergy.2014.02.065

Energy Performance of Buildings Directive. (2005). Structural Survey, 23(1). doi:10.1108/ss.2005.11023aab.001

Feng, X., Yan, D., & Hong, T. (2015). Simulation of occupancy in buildings. Energy and Buildings,87, 348-359. doi:10.1016/j.enbuild.2014.11.067

GmbH, B. (2013). Ecoinvent 3.0. Retrieved from https://www.ecoinvent.org/database/older-versions/ecoinvent-30/ecoinvent-30.html

Hosseini, M., & Akbari, H. (2014). Heating energy penalties of cool roofs: The effect of snow accumulation on roofs. Advances in Building Energy Research, 8(1), 1-13. doi:10.1080/17512549.2014.890541

Indoor environmental input parameters for design and assessment of energy performance of buildings addressing indoor air quality, thermal environment, lighting and acoustics. (n.d.). doi:10.3403/30133865u

Kolokotroni, M., Gowreesunker, B., & Giridharan, R. (2013). Cool roof technology in London: An experimental and modelling study. Energy and Buildings, 67, 658-667. doi:10.1016/j.enbuild.2011.07.011

Malys, L., Musy, M., & Inard, C. (2016). Direct and Indirect Impacts of Vegetation on Building Comfort: A Comparative Study of Lawns, Green Walls and Green Roofs. Energies, 9(1), 32. doi:10.3390/en9010032

Mustafaraj, G., Marini, D., Costa, A., & Keane, M. (2014). Model calibration for building energy efficiency simulation. Applied Energy, 130, 72-85. doi:10.1016/j.apenergy.2014.05.019

OECD. (2003). OECD Statistics. Retrieved 2016, from https://stats.oecd.org/

Oreskes, N. (2004). The Scientific Consensus on Climate Change. Science, 306(5702), 1686-1686. doi:10.1126/science.1103618

Paolini, R., Zinzi, M., Poli, T., Carnielo, E., & Mainini, A. G. (2014). Effect of ageing on solar spectral reflectance of roofing membranes: Natural exposure in Roma and Milano and the impact on the energy needs of commercial buildings. Energy and Buildings, 84, 333-343. doi:10.1016/j.enbuild.2014.08.008

Pisello, A. L. (2014). Optic-Energy Performance of Innovative and Traditional Materials for Roof Covering in Commercial Buildings in Central Italy. Advanced Materials Research, 884-885, 685-688. doi:10.4028/www.scientific.net/amr.884-885.685

Pisello, A. L., & Asdrubali, F. (2014). Human-based energy retrofits in residential buildings: A cost effective alternative to traditional physical strategies. Applied Energy, 133, 224-235. doi:10.1016/j.apenergy.2014.07.049

Pisello, A. L., & Cotana, F. (2014). The thermal effect of an innovative cool roof on residential buildings in Italy: Results from two years of continuous monitoring. Energy and Buildings, 69, 154-164. doi:10.1016/j.enbuild.2013.10.031

Pisello, A. L., Castaldo, V. L., Fabiani, C., & Cotana, F. (2016). Investigation on the effect of innovative cool tiles on local indoor thermal conditions: Finite element modeling and continuous monitoring. Building and Environment, 97, 55-68. doi:10.1016/j.buildenv.2015.11.038

Pisello, A. L., Castaldo, V. L., Piselli, C., Fabiani, C., & Cotana, F. (2016). How peers’ personal attitudes affect indoor microclimate and energy need in an institutional building: Results from a continuous monitoring campaign in summer and winter conditions. Energy and Buildings, 126, 485-497. doi:10.1016/j.enbuild.2016.05.053

Pisello, A. L., Piselli, C., & Cotana, F. (2015). Influence of human behavior on cool roof effect for summer cooling. Building and Environment, 88, 116-128. doi:10.1016/j.buildenv.2014.09.025

Practice for Calculating Solar Reflectance Index of Horizontal and Low-Sloped Opaque Surfaces. (n.d.). doi:10.1520/e1980

Razzaghmanesh, M., Beecham, S., & Salemi, T. (2016). The role of green roofs in mitigating Urban Heat Island effects in the metropolitan area of Adelaide, South Australia. Urban Forestry & Urban Greening, 15, 89-102. doi:10.1016/j.ufug.2015.11.013

Revision of EN 15251: Indoor Environmental Criteria. (2012). REHVA Journal, 5-11.

Salata, F., Vollaro, A. D., Lietovollaro, R. D., & Mancieri, L. (2015). Method for energy optimization with reliability analysis of a trigeneration and teleheating system on urban scale: A case study. Energy and Buildings, 86, 118-136. doi:10.1016/j.enbuild.2014.09.056

Santamouris, M. (2015). Regulating the damaged thermostat of the cities—Status, impacts and mitigation challenges. Energy and Buildings, 91, 43-56. doi:10.1016/j.enbuild.2015.01.027

Sleiman, M., Ban-Weiss, G., Gilbert, H. E., Franc¸ois, D., Berdahl, P., Kirchstetter, T. W., . . . Levinson, R (2011). Soiling of building envelope surfaces and its effect on solar reflectance—Part I: Analysis of roofing product databases. Solar Energy Materials and Solar Cells, 95(12), 3385-3399. doi:10.1016/j.solmat.2011.08.002

Synnefa, A., Santamouris, M., & Akbari, H. (2007). Estimating the effect of using cool coatings on energy loads and thermal comfort in residential buildings in various climatic conditions. Energy and Buildings, 39(11), 1167-1174. doi:10.1016/j.enbuild.2007.01.004

Wang, Y., & Akbari, H. (2015). Development and application of ‘thermal radiative power’ for urban environmental evaluation. Sustainable Cities and Society, 14, 316-322. doi:10.1016/j.scs.2014.07.003
