Evaluation of Dye-Sensitized Solar Cells using Rutile-Mesoporous-SiO2@TiO2/CQDs as Scattering Layer

Kozo Taguchi; Naoki Ikemoto; Trang Nakamoto

doi:10.21625/essd.v10i4.1249

Kozo Taguchi , Naoki Ikemoto , Trang Nakamoto

https://doi.org/10.21625/essd.v10i4.1249

Issue
Vol. 10 Issue 4 (2025)

Submitted
October 7, 2025

Accepted
December 21, 2025

Published
December 31, 2025

Keywords:

DSSC, SiO2, TiO2, CQDs, Light-scattering layer

PDF XML

Abstract

Global warming is one of the most pressing environmental challenges worldwide. Dye-sensitized solar cells (DSSCs) have garnered significant attention as an eco-friendly alternative for energy generation, as they produce electricity without emitting greenhouse gases. Achieving a breakthrough in DSSC efficiency is crucial for overcoming the performance ceiling of conventional photoanodes. This work presents a highly scalable and simple light-harvesting strategy that significantly advances the state of the art in TiO₂-based composite architectures. In this study, we investigated the impact of incorporating Rutile-Mesoporous-SiO₂@TiO₂/carbon quantum dots (CQDs) particles into the scattering layer of DSSCs. The synthesized particles were characterized using scanning electron microscopy (SEM), energy-dispersive X-ray spectroscopy (EDS), X-ray diffraction (XRD), and UV–Vis spectroscopy. Their performance as a component of DSSCs was also evaluated in terms of power conversion efficiency. SEM analysis revealed that the addition of CQDs induced distinct surface irregularities, which were not observed in the undoped samples. UV–Vis measurements demonstrated that Rutile-MP-SiO₂@TiO₂/CQDs particles exhibited higher reflectance in the 380–780 nm range compared to their CQD-free counterparts. Furthermore, the proposed Rutile-MP-SiO₂@TiO₂/CQDs scattering layer markedly enhanced light scattering, yielding a 32.77% higher power density than cells with Anatase-MP-SiO₂@TiO₂. This simple and effective strategy overcomes conventional limitations and enables high-performance DSSCs.

Full text article

Generated from XML file

References

Gong, J., Liang, J., & Sumathy, K. (2012). Review on dye-sensitized solar cells (DSSCs): Fundamental concepts and novel materials. Renewable and Sustainable Energy Reviews, 16(8), 5848-5860. https://doi.org/10.1016/j.rser.2012.04.044 DOI: https://doi.org/10.1016/j.rser.2012.04.044

Prabavathy, N., Shalini, S., Balasundaraprabhu, R., Velauthapillai, D., Prasanna, S., & Muthukumarasamy, N. (2017). Enhancement in the photostability of natural dyes for dye‐sensitized solar cell (DSSC) applications: a review. International Journal of Energy Research, 41(10), 1372-1396. https://doi.org/10.1002/er.3703 DOI: https://doi.org/10.1002/er.3703

Karim, N. A., Mehmood, U., Zahid, H. F., & Asif, T. (2019). Nanostructured photoanode and counter electrode materials for efficient Dye-Sensitized Solar Cells (DSSCs). Solar Energy, 185, 165-188. https://doi.org/10.1016/j.solener.2019.04.057 DOI: https://doi.org/10.1016/j.solener.2019.04.057

Hamann, T. W., & Ondersma, J. W. (2011). Dye-sensitized solar cell redox shuttles. Energy & Environmental Science, 4(2), 370-381. DOI: https://doi.org/10.1039/C0EE00251H

Hossain, M. K., Pervez, M. F., Uddin, M. J., Tayyaba, S., Mia, M. N. H., Bashar, M. S., ... & Khan, M. A. (2018). Influence of natural dye adsorption on the structural, morphological, and optical properties of TiO2-based photoanode of dye-sensitized solar cell. Mater. Sci., 36, 93-101. https://doi.org/ 10.1515/msp-2017-0090 DOI: https://doi.org/10.1515/msp-2017-0090

Mustafa, M. N., & Sulaiman, Y. (2021). Review on the effect of compact layers and light scattering layers on the enhancement of dye-sensitized solar cells. Solar Energy, 215, 26-43. https://doi.org/10.1016/j.solener.2020.12.030 DOI: https://doi.org/10.1016/j.solener.2020.12.030

Lee, J. K., Jeong, B. H., Jang, S. I., Kim, Y. G., Jang, Y. W., Lee, S. B., & Kim, M. R. (2009). Preparations of TiO2 pastes and their application to a light-scattering layer for dye-sensitized solar cells. Journal of Industrial and Engineering Chemistry, 15(5), 724-729. https://doi.org/10.1016/j.jiec.2009.09.053 DOI: https://doi.org/10.1016/j.jiec.2009.09.053

Nakamoto, T., Higuchi, K., & Taguchi, K. (2023a). Effectiveness of Light Scattering Layer Using Mesoporous SiO2‐TiO2 Core‐Shell on Dye‐Sensitized Solar Cells. IEEJ Transactions on Electrical and Electronic Engineering, 19(1), 157-159. https://doi.org/10.1002/tee.23938 DOI: https://doi.org/10.1002/tee.23938

Nakamoto, T., Higuchi, K., & Taguchi, K. (2023b). Investigation of Rutile and Anatase Mesoporous SiO2@ TiO2 Particles in the Scattering Layer of Dye‐Sensitized Solar Cells. IEEJ Transactions on Electrical and Electronic Engineering, 19(2), 285-287. https://doi.org/10.1002/tee.23956 DOI: https://doi.org/10.1002/tee.23956

Muhammad, N., Zanoni, K. P. S., Iha, N. Y. M., & Ahmed, S. (2018). The Use of Rutile‐and Anatase‐Titania Layers towards Back Light Scattering in Dye‐Sensitized Solar Cells. ChemistrySelect, 3(37), 10475-10482. https://doi.org/10.1002/slct.201801569 DOI: https://doi.org/10.1002/slct.201801569

Wang, Y., & Hu, A. (2014). Carbon quantum dots: synthesis, properties and applications. Journal of Materials Chemistry C, 2(34), 6921-6939. https://doi.org/10.1039/C4TC00988F DOI: https://doi.org/10.1039/C4TC00988F

Authors

Kozo Taguchi

Professor, Graduate School of Science and Engineering, Ritsumeikan University, Shiga, Japan

Naoki Ikemoto

Master, Graduate School of Science and Engineering, Ritsumeikan University, Shiga, Japan

[email protected] (Primary Contact)

Trang Nakamoto

Assistant Professor, Graduate School of Science and Engineering, Ritsumeikan University, Shiga, Japan

Taguchi, K., Ikemoto, N., & Nakamoto, T. (2025). Evaluation of Dye-Sensitized Solar Cells using Rutile-Mesoporous-SiO2@TiO2/CQDs as Scattering Layer. Environmental Science & Sustainable Development, 10(4), 12–19. https://doi.org/10.21625/essd.v10i4.1249

Download Citation

This work is licensed under a Creative Commons Attribution 4.0 International License.

The Author shall grant to the Publisher and its agents the nonexclusive perpetual right and license to publish, archive, and make accessible the Work in whole or in part in all forms of media now or hereafter known under a Creative Commons Attribution 4.0 License or its equivalent, which, for the avoidance of doubt, allows others to copy, distribute, and transmit the Work under the following conditions:

Attribution: other users must attribute the Work in the manner specified by the author as indicated on the journal Web site;

With the understanding that the above condition can be waived with permission from the Author and that where the Work or any of its elements is in the public domain under applicable law, that status is in no way affected by the license.

The Author is able to enter into separate, additional contractual arrangements for the nonexclusive distribution of the journal's published version of the Work (e.g., post it to an institutional repository or publish it in a book), as long as there is provided in the document an acknowledgement of its initial publication in this journal.
Authors are permitted and encouraged to post online a pre-publication manuscript (but not the Publisher's final formatted PDF version of the Work) in institutional repositories or on their Websites prior to and during the submission process, as it can lead to productive exchanges, as well as earlier and greater citation of published work (see The Effect of Open Access). Any such posting made before acceptance and publication of the Work shall be updated upon publication to include a reference to the Publisher-assigned DOI (Digital Object Identifier) and a link to the online abstract for the final published Work in the Journal.
Upon Publisher's request, the Author agrees to furnish promptly to Publisher, at the Author's own expense, written evidence of the permissions, licenses, and consents for use of third-party material included within the Work, except as determined by Publisher to be covered by the principles of Fair Use.
The Author represents and warrants that:

The Work is the Author's original work;
The Author has not transferred, and will not transfer, exclusive rights in the Work to any third party;
The Work is not pending review or under consideration by another publisher;
The Work has not previously been published;
The Work contains no misrepresentation or infringement of the Work or property of other authors or third parties; and
The Work contains no libel, invasion of privacy, or other unlawful matter.

The Author agrees to indemnify and hold Publisher harmless from Author's breach of the representations and warranties contained in Paragraph 7 above, as well as any claim or proceeding relating to Publisher's use and publication of any content contained in the Work, including third-party content.

This work is licensed under a Creative Commons Attribution 4.0 International License.

Received 2025-10-07
Accepted 2025-12-21
Published 2025-12-31

Most read articles by the same author(s)

Hiroki Shimamura, Trang Nakamoto, Kozo Taguchi, Visible Light-responsive Photocatalyst Synthesized by Incorporating CQDs into SiO2@TiO2 , Environmental Science & Sustainable Development: Vol. 10 Issue 1: Special Issue (2025): Building Resilient Cities: Integrating Sustainability, Climate Adaptation, and Urban Resilience
Kaisei Shiraki, Trang Nakamoto, Kozo Taguchi, Metal Ions Intercalated to Birnessite Manganese to Make High-Performance Catalyst for the Cathode of MFCs , Environmental Science & Sustainable Development: Vol. 10 Issue 1: Special Issue (2025): Building Resilient Cities: Integrating Sustainability, Climate Adaptation, and Urban Resilience
Hodaka Shimohata, Trang Nakamoto, Taguchi Kozo, Evaluation of Glucose-Infused Ceramic Separators in Microbial Fuel Cells , Environmental Science & Sustainable Development: Vol. 10 Issue 2 (2025)
Tsuyoshi Araoa, Trang Nakamoto, Kozo Taguchi, Performance enhancement of microbial fuel cells through g-C₃N₄-embedded biochar anodes , Environmental Science & Sustainable Development: Vol. 10 Issue 4 (2025)

1. Introduction

With the world’s population growing and the demand for energy resources increasing, global warming and the depletion of fossil fuels have become pressing issues. The focus has shifted towards a promising energy solution: solar cells. These cells offer a sustainable approach as they harness renewable energy without emitting greenhouse gases. Notably, dye-sensitized solar cells (DSSCs) stand out as an affordable option in this category (Gong et al., 2012).

DSSCs are created using transparent electrodes, counter electrodes, dyes, electrolytes, and semiconductor materials (Prabavathy et al., 2017). The underlying mechanism involves the absorption of sunlight by a dye-infused semiconductor. This process triggers the release of electrons from the dye, which are then propelled into the conduction band and subsequently captured at the counter electrode. The electrolyte plays a crucial role in replenishing the dye through a regenerative process. Simultaneously, a reduction reaction takes place at the counter electrode, ensuring the electrolyte's continuous functionality (Karim et al., 2019), (Hamann & Ondersma, 2011). TiO₂ is a well-studied semiconductor material used in DSSC. This is because TiO₂ has a large surface area and can adsorb most commonly used dyes (Hossain et al., 2018). To further enhance the efficiency of DSSCs, numerous studies have investigated methods to improve light harvesting and reduce charge recombination. Specifically, the incorporation of a dedicated scattering layer into the active layer has been shown to be an effective strategy for mitigating the recombination effect and enhancing performance by increasing the scattering capability ((Mustafa & Sulaiman, 2021); (Lee et al., 2009)).

This research introduces a novel material, Rutile Mesoporous SiO₂@TiO₂ integrated with Carbon Quantum Dots (CQDs) as the light-scattering layer in DSSCs. Prior studies have established that controlling the photoanode structure and material phase is essential for optimizing DSSC performance. For example, incorporating a mesoporous SiO₂ framework into the photoanode has been shown to markedly increase the surface area for dye adsorption, thereby boosting current density and overall efficiency (Nakamoto et al., 2023). Building on this surface-area enhancement strategy, another study (Nakamoto et al., 2023),(Muhammad et al., 2018) examined the crystal phase and demonstrated that the Rutile phase offers higher light reflectivity than Anatase, resulting in a clear improvement in power output. However, this precursor work (Nakamoto et al., 2023) optimized only the Rutile-Mesoporous-SiO₂@TiO₂ structure and did not incorporate the multi-functional benefits of CQDs. To address the need for a highly efficient, multi-functional light-scattering material, we propose a novel composite architecture that significantly advances the work of (Nakamoto et al., 2023) by integrating CQDs to further enhance light harvesting.CQDs are one of the nanomaterials that have attracted much attention in recent years. Doping rutile-MP-SiO₂@TiO₂ with CQDs was considered to improve the absorption rate, which is a drawback of the rutile type. We thought that CQDs could be converted efficiently because of their stable optical absorption (Wang & Hu, 2014). This is also because the loss of doped CQDs when annealed at 990 °C is thought to roughen the surface of the particles, which is thought to increase diffuse reflection and improve reflectance properties.

2. Materials and Methods

First, it involved the meticulous mixing of 0.768 g of citric acid and 0.72 g of urea with 20 ml of purified water, followed by a thorough 20-minute stirring process. Next, the synthesized solution was then hydrothermally synthesized at 200 °C for 8 hours. Finally, the hydrothermally synthesized solution was filtered to obtain the CQDs solution. This solution was stored in a refrigerator.

2.2. Mesoporous SiO2 (MP-SiO2)

First, the addition of 3 ml of tetraethyl orthosilicate and 1.2 ml of octadecyltrimethoxysilane to 60 ml of ethanol, followed by a 10-minute stirring period to achieve a transparent solution. Subsequently, 9 ml of ammonia was gradually introduced at a rate of 0.5 ml/min while stirring, and the mixture was then stirred for an extended 1-day period. Finally, the collection of particles through centrifugation, followed by three ethanol washes. The particles were then subjected to a 60 °C drying process for a full day, ensuring their readiness for further analysis.

2.3. Anatase Mesoporous SiO2@TiO2 (A-MP-SiO2@TiO2)

First, 0.6 ml of titanium(IV)tetrabutoxide and 60 ml of ethanol were stirred for 10 min to obtain a clear solution. The subsequent steps were meticulously executed: 0.6g of the prepared MP-SiO₂ was introduced into the solution and subjected to ultrasonic dispersion for 15 minutes. Then, 1.2 ml of purified water was gradually added at a rate of 20 µl/min, followed by a 6-hour stirring period. The particles were then isolated through centrifugation, washed thrice with ethanol, and dried at 60 °C for half a day. Finally, it involved annealing the dried particles at 900 °C for 2 hours.

2.4. Rutile Mesoporous SiO2@TiO2/CQDs (Ru-MP-SiO2@TiO2/CQDs)

First, 1.5 ml of titanium (IV) tetrabutoxide and 60 ml of ethanol were stirred for 10 min to obtain a clear solution. The subsequent steps were meticulously executed: 0.6 g of the prepared MP-SiO₂ was introduced into the solution and subjected to ultrasonic dispersion for 15 minutes. Then, 3 ml of CQDs was gradually added at a rate of 20 µl/min, followed by a 6-hour stirring period. The particles were then isolated through centrifugation, washed thrice with ethanol, and dried at 60 °C for half a day. Finally, it involved annealing the dried particles at 990 °C for 4 hours.

2.5. Photoanode

Figure 1 illustrates the process of electrodeposition and spin-coating. FTO glass was used as the base for photoanodes. The active layer's preparation commenced with the utilization of commercially sourced TiO₂ (P25) nanoparticles. The electrodeposition solution underwent a 24-hour preparation process involving the stirring of 0.2g of P25 in 40 ml of ethanol, ensuring a homogeneous mixture. Electrodeposition was performed at 0.12mA for 100s using the prepared solution. The electrodeposition FTO glass was then annealed at 500 °C for 1 hour. This process yielded active layers of 10µm.

The spin-coating technique was employed to meticulously craft the scattering layer, positioned directly above the active layer. For the spin-coating method, 0.15g of Ru-MP-SiO2@TiO2/CQDs was mixed with 2.75 ml of isopropanol, 27.5µl of Triton-X, 55 µl of titanium tetraisopropoxide, 27.5mg of polyethylene glycol, and 2g of Zirconia balls were added to the mixture and stirred for 5 h 15 min to form a paste. Then, 0.6ml of the pasted solution was dropped onto the active layer and spin-coated for 1 minute. A scattering layer of 2µm to 3µm was obtained by this process. The scattering layer, once formed, underwent a heat treatment process at 500 °C for an hour, ensuring its stability and structural integrity.

A day-long immersion process was employed for the photoanodes, ensuring a comprehensive interaction with the dye solution. The preparation of the dye solution required a precise combination of 10mg of cis-bis(isothiocyanato) (2,2'bipyridyl-4,4'-dicarboxlato)(4,4'-dinonyl-2'-bipyridyl) ruthenium(II) dye and 0.442g of CDCA, mixed with 28.5 ml of acetonitrile and an equal volume of t-butyl alcohol, followed by a 10-minute stirring process.

Figure 1.Electrodeposition and spin-coating process. (Source: by authors)

2.6. Counter electrode and gel electrode

The counter electrode's foundation was constructed using an economical and adaptable stainless-steel mesh, offering both cost-effectiveness and versatility. The carbon ink application process involved immersing the stainless-steel mesh for 5 minutes, followed by a thorough drying period at 60 °C for 2 hours, ensuring optimal coverage. This study opted for gel electrolytes over aqueous alternatives to ensure long-term stability and reliability. For the electrolyte, 3 ml of electrolyte solution and 0.6 ml of propylene carbonate were stirred at 80 °C for 1 hour, and 0.5g of PMMA was added in triplicate during stirring. The drying phase was executed at 70 °C for a duration of 3.5 hours, ensuring the mixture's stability and readiness for the next steps. The electrolyte solution was obtained by stirring 0.507g of iodine with 0.133g of lithium iodide, 10 ml of acetonitrile, 1.59g of 1,2-Dimethyl-3-propylimidazolium Iodide, and 0.732 ml of 4-test-Butylpyridine for 30 minutes.

2.7. Creating DSSC

Figure 2 illustrates the steps involved in fabricating a DSSC. First, a photoanode with dye absorbed on it was taped to prevent short circuits except for the adsorbed film. The subsequent steps involved the precise placement of the gel electrolyte onto the adsorbed membrane, followed by the addition of a stainless steel mesh, immersed in carbon ink, which was then carefully secured with tape and a clip.

Figure 2.Fabrication process of DSSC. (Source: by authors)

2.8. Evaluation Method

Ru-MP-SiO2@TiO2/CQDs particles were attached to the glass, then sputtered with gold and observed by SEM (S-4300, Hitachi, Ltd). EDS was employed to unravel the intricate composition of the particles, providing valuable insights into their elemental makeup. The reflectance of the particles was measured using a spectrophotometer. XRD was used to confirm the crystalline state of the particles. Reflectance spectra were measured using a spectrophotometer, based on n = 3 independent samples for Ru-MP-SiO2@TiO₂/CQDs and Ru-MP-SiO2@TiO₂, and n = 2 for A-MP-SiO2@TiO₂. Results are presented as mean values with corresponding error bars.

DSSC voltage measurements, DSSCs were evaluated under illumination from a halogen lamp (MegaLight 100), adjusted to 3300 lx, and calibrated using a digital light meter (MT-921 LIGHT METER) before each measurement. All measurements were conducted in a controlled indoor environment (approximately 22 °C). The active cell area was fixed at 0.20 cm². Voltage-current characteristics were obtained by varying the external load from 300 kΩ to 800 Ω, and the power density was calculated based on the effective area. For the Ru-MP-SiO2@TiO₂ sample, four DSSC cells were tested, whereas three cells were measured for the Ru-MP-SiO2@TiO2/CQDs and A-MP-SiO2@TiO₂ samples. Because an indoor low-illuminance light source was used, the power density results are not directly comparable to AM1.5G conditions and are instead evaluated under indoor-light performance metrics.

3. Experimental Results

3.1. Observation of particles

Figure 3 are SEM images of particles of (a) Ru-MP-SiO₂@TiO₂ and (b) Ru-MP-SiO₂@TiO₂/CQDs. The presence of CQDs could not be confirmed in this SEM image. The unique properties of CQDs, attributed to their minuscule size, are thought to be the primary factor in this phenomenon. The particles in the Figure 3 (a) and (b) indicate that the particle size is 200nm to 400nm for both. Figure 3 (b) appeared to have a larger surface area and a rougher texture compared to Figure 3(a). The surface area expansion through CQDs doping, coupled with the surface irregularities induced by annealing defects, is the key contributor to this observed effect.

Figure 3.SEM images of (a) Ru-MP-SiO₂@TiO₂ and (b) Ru-MP-SiO₂@TiO₂/CQDs. (Source: by authors)

3.2. Analysis of particle composition

Figure 4 provides a comprehensive visualization of the material's structure: (a) displays the SEM image of Ru-MP-SiO₂@TiO₂/CQDs, while (b), (c), and (d) offer mapping images of Si, Ti, and C, respectively, revealing intricate details of the composition. Figure 5 shows the EDS spectrum of Ru-MP-SiO₂@TiO₂/CQDs with peaks corresponding to C, O, Si, and Ti. The horizontal axis shows the X-ray energy, and the vertical axis shows the intensity. The results show that Ti exhibits the highest energy band, and C exhibits a small intensity in the lowest energy band. Table 1 shows the mass% of the chemical elements in the square in Figure 4 (a). The results show 7.82% of C, 18.76% of Si, and 25.77% of Ti. Although 7.82% of carbon was detected in the EDS analysis, this carbon is most likely derived from carbon residues produced during high-temperature treatment or from the carbon tape used for sample mounting. Given the high calcination temperature of 990 °C, it is unlikely that any functional CQDs remained after firing.

Figure 4.(a) SEM image of Ru-MP-SiO₂@TiO₂/CQDs. EDS mapping images of (b) Si, (c) Ti, and (d) C. (Source: by authors)

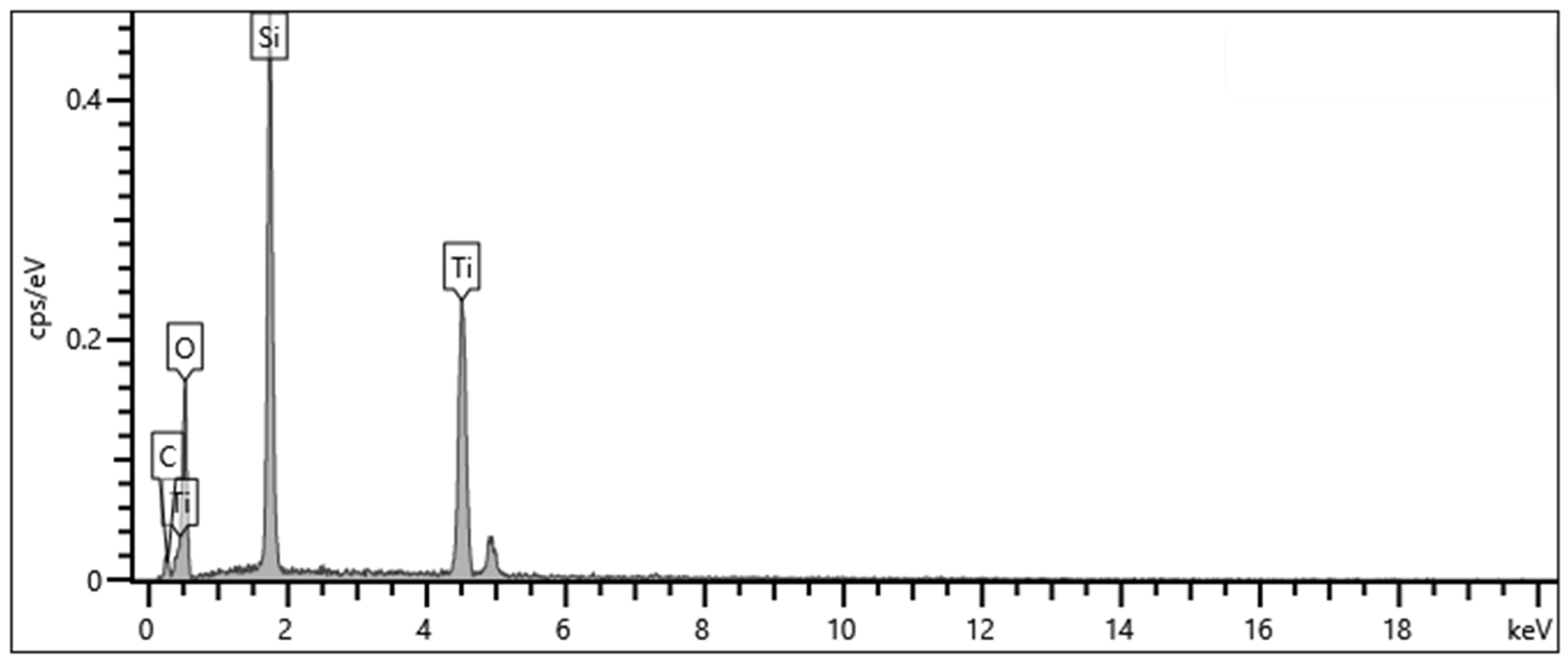

Figure 5. EDS spectrum of Ru-MP-SiO2@TiO2/CQDs. (Source: by authors)

Table 1.Mass% of elemental compositions. (Source: by authors)
Chemical　element	Mass (%)
C	7.82
O	47.65
Si	18.76
Ti	25.77
total	100.00

3.3. Evaluation of crystal structure by X-ray analysis

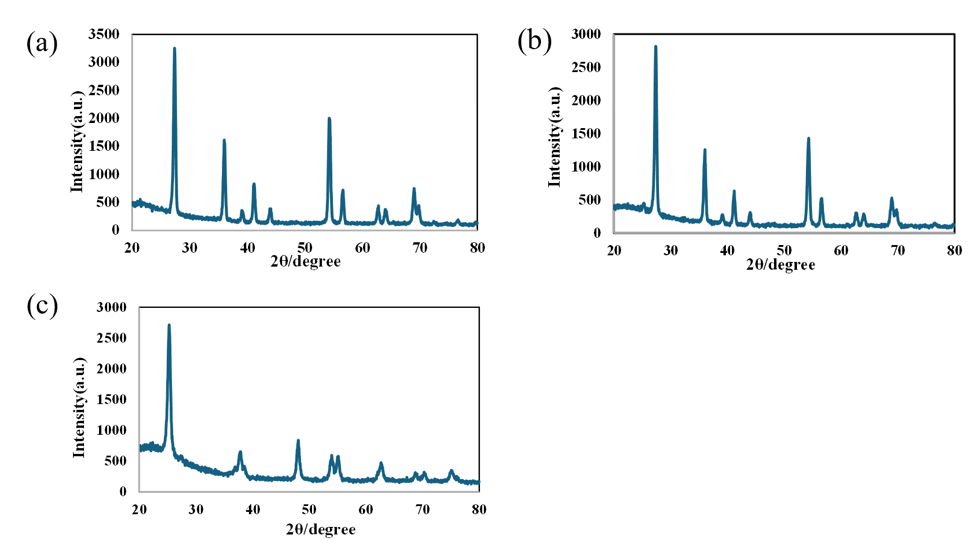

Figure 6(a) illustrates the XRD pattern of the prepared Ru-MP-SiO₂@TiO₂/CQDs. From the XRD pattern, Ru-MP-SiO₂@TiO₂/CQDs exhibits high intensity even as the diffraction angle increases, confirming the presence of a peak representing the rutile phase. Figure 6(b) shows the XRD pattern of the prepared Ru-MP-SiO₂@TiO₂. The XRD pattern shows a rutile phase peak as in Figure 6(a), but the intensity is lower than that with CQD. Figure 6(c) shows the XRD pattern of the prepared A-MP-SiO₂@TiO₂. The XRD pattern shows that there is a peak representing the anatase phase with a lower intensity as the diffraction angle increases.

Figure 6.XRD pattern of (a) Ru-MP-SiO₂@TiO₂/CQDs and (b) Ru-MP-SiO₂@TiO_2, (c) A-MP-SiO₂@TiO₂ (Source: by authors)

3.4. Evaluation of reflectance characteristics of Ru-MP-SiO2@TiO2/CQDs

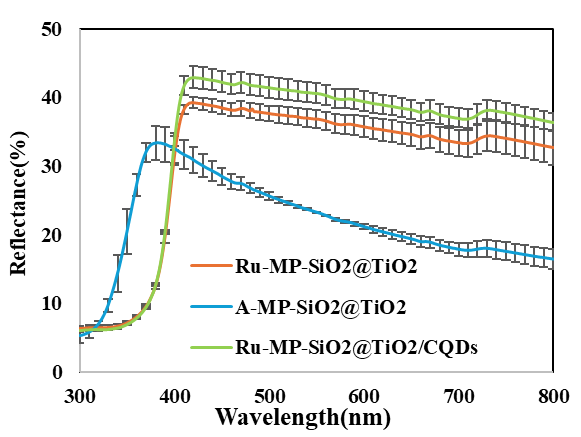

Figure 7 illustrates the reflectance characteristics of Ru-MP-SiO₂@TiO₂/CQDs, Ru-MP-SiO₂@TiO₂, and A-MP- SiO₂@TiO₂. In the visible light spectrum, Ru-MP-SiO₂@TiO₂ exhibited superior reflectance compared to A-MP-SiO₂@TiO₂. The data for A-MP-SiO₂@TiO₂ were based on n=2 measurements, with error bars representing the Min-Max range, while the data for Ru-MP-SiO₂@TiO₂ and the Ru-MP-SiO₂@TiO₂/CQDs composite were based on n=3 measurements, with error bars indicating the standard deviation (±SD) of the replicates. The Ru-MP-SiO₂@TiO₂/CQDs composite demonstrated even more enhanced performance. The exceptional reflectance of Ru-MP-SiO₂@TiO₂/CQDs can be attributed to the higher refractive index of rutile relative to anatase, coupled with increased surface defects and diffuse reflections induced by CQD doping and subsequent high-temperature annealing.

Figure 7.Reflectance spectra of the scattering layers: Ru-MP-SiO2@TiO2/CQDs, Ru-MP-SiO2@TiO2, and A-MP-SiO2@TiO2. (Source: by authors)

3.5. Evaluation of Ru-MP-SiO2@TiO2/CQDs on power density

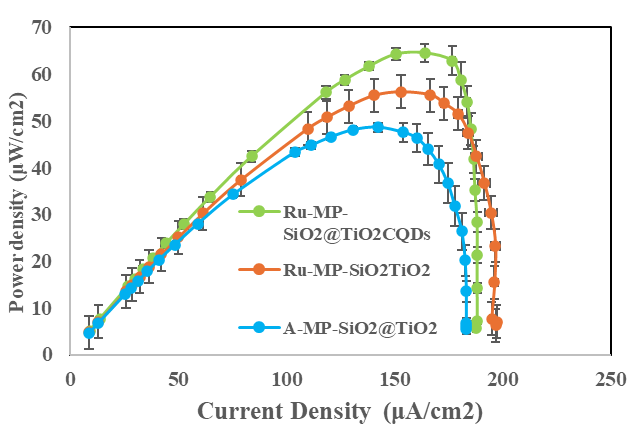

Figure 8 illustrates the power density of DSSC with Ru-MP-SiO₂@TiO₂/CQDs and Ru-MP-SiO₂@TiO₂ and A-MP-SiO₂@TiO₂ as scattering layers. The performance data for Ru-MP-SiO₂@TiO₂/CQDs and A-MP-SiO₂@TiO₂ were obtained from n = 3 independent cells, while Ru-MP-SiO₂@TiO₂ was evaluated using n = 4 cells. All values are reported as the mean ± standard deviation (SD), and the error bars in Figure 8 represent the SD of the measurements. The maximum power density of Ru-MP-SiO₂@TiO₂ was 56.197 ± 0.522µW, indicating highly stable device performance. A-MP-SiO₂@TiO₂ exhibited a maximum power density of 48.644 ± 0.999µW, whereas incorporating CQDs into Ru-MP-SiO₂@TiO₂ led to a further improvement, achieving 64.581 ± 1.915µW.

In particular, Ru-MP-SiO₂@TiO₂/CQDs showed a 32.77% enhancement in maximum power density compared with A-MP-SiO₂@TiO₂. The observed trend is consistent with the reflectance measurements, suggesting that increased reflectivity contributes significantly to the improved DSSC performance.

Figure 8.Power density of DSSC with Ru-MP-SiO2@TiO2/CQDs and Ru-MP-SiO2@TiO2 and A- MP-SiO2@TiO2 as scattering layers. (Source: by authors)

4. Conclusion.

This research investigates the intricate relationship between particle composition, the reflectance properties of Ru-MP-SiO2@TiO2/CQDs, and the resulting power density of DSSCs, offering valuable insights into their interdependence. Ru-MP-SiO2@TiO2/CQDs were found to have excellent reflective properties in the scattering layer of DSSC. This indicates the effectiveness of Ru-MP-SiO2@TiO2/CQDs in the scattering layer of DSSC. The incorporation resulted in a 32.77% enhancement in maximum power density compared to the control sample (A-MP-SiO2@TiO2). The decomposition of the doped CQDs during the high-temperature annealing process is the primary cause for the enhanced scattering performance and resulting increase in DSSC power output, likely by inducing surface roughening of the particles. The power density measurements were intentionally conducted under a 3300 lx halogen lamp to mimic indoor low-light conditions relevant to IoT energy-harvesting applications. This provides practical insight into the real-world operating environment of the proposed device architecture. Future efforts will focus on structural optimization to further enhance light-harvesting efficiency. The next major objective is to construct a hollow Rutile@TiO2 shell structure by etching out the internal SiO2 core. Hollow structures are known to enhance light harvesting efficiency by promoting multiple reflections within the particles, thereby significantly lengthening the optical path. Concurrently, from a practical application perspective, it is necessary to evaluate the long-term stability and durability of the proposed structure, and to address challenges related to uniformity during scale-up to large-area cells.

Acknowledgements

The abstract of this paper was presented at the Green Urbanism (GU) Conference-9 th Edition, which was held on the 25 ^th-27 ^thof November 2025.

Ethics approval

Not applicable.

Conflict of interest

The authors declare that there is no conflict of interest regarding the publication of this paper.
