Visible Light-responsive Photocatalyst Synthesized by Incorporating CQDs into SiO2@TiO2

Hiroki Shimamura; Trang Nakamoto; Kozo Taguchi

doi:10.21625/essd.v10i1.1126

Hiroki Shimamura , Trang Nakamoto , Kozo Taguchi

https://doi.org/10.21625/essd.v10i1.1126

Issue
Vol. 10 Issue 1: Special Issue (2025): Building Resilient Cities: Integrating Sustainability, Climate Adaptation, and Urban Resilience

Submitted
September 29, 2024

Accepted
January 19, 2025

Published
March 27, 2025

Keywords:

Mesoporous SiO2@TiO2, Photocatalytic, Methylene blue, CQD, Photocatalyst

PDF XML

Abstract

In recent years, water pollution caused by population growth has become one of the most health-threatening problems. To solve this problem, photocatalytic degradation of organic pollutants using solar energy is expected. Among various photocatalysts, TiO2 has been widely used and studied because of its non-toxicity, low cost, and high chemical stability. However, TiO2 has a wide band gap of 3.2 eV, so only ultraviolet light is available. Since ultraviolet rays account for only about 3~5% of sunlight, research on the effective use of visible light, which accounts for about 45% of sunlight, has been active in recent years. Known major approaches include heterojunction coupling, doping, and dye sensitization. Among them, composites of carbon nanomaterials and TiO2 have been shown to improve optical absorption in visible light. In recent years, carbon quantum dots (CQDs) have attracted attention as a new carbon nanomaterial because of their unique properties. CQDs are non-toxic, inexpensive, and easy to tune. Therefore, it has been applied as a composite material for TiO2 and has been reported to have an optical absorption edge of 419 nm and a band gap of 2.96 eV. In this study, SiO2@TiO2/CQD heterojunction structures were fabricated, and their photocatalytic activity was evaluated using methylene blue. By adjusting the particle size of SiO2@TiO2, the optical wavelength to be reflected can be selected. Among them, SiO2@TiO2 which can reflect optical wavelengths around 400 nm was adjusted to form a structure that allows more efficient optical utilization of TiO2/CQDs.SiO2@TiO2/CQD is a mixture of TiO2 and CQDs coated on the surface of a SiO2 porous structure prepared by the Stover method. This simple preparation method resulted in high surface area, efficient light utilization due to the heterostructure, and efficient charge mobility. As a result, the degradation performance against organic pollutants was shown to be improved.

Full text article

Generated from XML file

References

Tonni Agustiono Kurniawan , Zhu Mengting , Dun Fu , Swee Keong Yeap , Mohd Hafiz Dzarfan Othman , Ram Avtar , Tong Ouyang.(2020). Functionalizing TiO2 with graphene oxide for enhancing photocatalytic degradation of methylene blue (MB) in contaminated wastewater. Journal of Environmental Management 270, 11087, pp1-2, DOI: https://doi.org/10.1016/j.jenvman.2020.110871

Kazuhiro Takanabe. (2017). Photocatalytic Water Splitting: Quantitative Approaches toward Photocatalyst by Design. ACS Catalysis 7, Issue (1), pp8006-8022. DOI: https://doi.org/10.1021/acscatal.7b02662

Tan Mao, Junyan Zha, Ying Hu, Qian Chen, Jiaming Zhang, Xueke Luo. (2024) Research Progress of TiO2 Modification and Photodegradation of Organic Pollutants. Inorganics 2024, 12(7), 178,pp1-2. DOI: https://doi.org/10.3390/inorganics12070178

Dongming Xu,Haomiao Yu, Yang Qin ,Yang Di ,Hongbing Jia ,Fengsheng Li,,Jie Liu. (2024)Hollow TiO2–SiO2 Nanospheres for Photocatalytic Degradation of Organic Dyes. ACS Applied Nano MaterialsVolume 7, Issue 3,pp2414-2416. DOI: https://doi.org/10.1021/acsanm.3c04783

Bablu Basumatary , Rajmoni Basumatary , Anjalu Ramchiary , Dimpul Konwar(2022). Evaluation of Ag@TiO2/WO3 heterojunction photocatalyst for enhanced photocatalytic activity towards methylene blue degradation. Chemosphere 286,131848, pp1-8. DOI: https://doi.org/10.1016/j.chemosphere.2021.131848

Muhammad Shafique , Muhammad Shabir Mahr , Muhammad Yaseen , Haq Nawaz Bhatti ,(2022). CQD/TiO2 nanocomposite photocatalyst for efficient visible light-driven purification of wastewater containing methyl orange dye. Materials Chemistry and Physics 278,1255, pp1-13. DOI: https://doi.org/10.1016/j.matchemphys.2021.125583

Trang Nakamoto, Kakeru Higuchi, Kozo Taguchi.(2023). Investigation of Rutile and Anatase Mesoporous SiO2@TiO2 Particles in the Scattering Layer of Dye-Sensitized Solar Cells. IEEJ Transactions on Electrical and Electronic Engineering 19(2), pp 285-287. DOI: https://doi.org/10.1002/tee.23956

Dong Suk Kim, Seung-Yeop Kwak. (2007). The hydrothermal synthesis of mesoporous TiO2 with high crystallinity, thermal stability, large surface area, and enhanced photocatalytic activity. Applied Catalysis A: General 323, pp110–118. DOI: https://doi.org/10.1016/j.apcata.2007.02.010

Authors

Hiroki Shimamura

Master's student, Ritsumeikan University, Kusatsu, Japan

[email protected] (Primary Contact)

Trang Nakamoto

Assistant Professor, Electrical and Electronic Engineering, Ritsumeikan University of Kusatsu, Japan

Kozo Taguchi

Professor, Electrical and Electronic Engineering, Ritsumeikan University of Kusatsu, Japan

Shimamura, H., Nakamoto, T., & Taguchi, K. (2025). Visible Light-responsive Photocatalyst Synthesized by Incorporating CQDs into SiO2@TiO2. Environmental Science & Sustainable Development, 10(1), 47–52. https://doi.org/10.21625/essd.v10i1.1126

Download Citation

This work is licensed under a Creative Commons Attribution 4.0 International License.

The Author shall grant to the Publisher and its agents the nonexclusive perpetual right and license to publish, archive, and make accessible the Work in whole or in part in all forms of media now or hereafter known under a Creative Commons Attribution 4.0 License or its equivalent, which, for the avoidance of doubt, allows others to copy, distribute, and transmit the Work under the following conditions:

Attribution: other users must attribute the Work in the manner specified by the author as indicated on the journal Web site;

With the understanding that the above condition can be waived with permission from the Author and that where the Work or any of its elements is in the public domain under applicable law, that status is in no way affected by the license.

The Author is able to enter into separate, additional contractual arrangements for the nonexclusive distribution of the journal's published version of the Work (e.g., post it to an institutional repository or publish it in a book), as long as there is provided in the document an acknowledgement of its initial publication in this journal.
Authors are permitted and encouraged to post online a pre-publication manuscript (but not the Publisher's final formatted PDF version of the Work) in institutional repositories or on their Websites prior to and during the submission process, as it can lead to productive exchanges, as well as earlier and greater citation of published work (see The Effect of Open Access). Any such posting made before acceptance and publication of the Work shall be updated upon publication to include a reference to the Publisher-assigned DOI (Digital Object Identifier) and a link to the online abstract for the final published Work in the Journal.
Upon Publisher's request, the Author agrees to furnish promptly to Publisher, at the Author's own expense, written evidence of the permissions, licenses, and consents for use of third-party material included within the Work, except as determined by Publisher to be covered by the principles of Fair Use.
The Author represents and warrants that:

The Work is the Author's original work;
The Author has not transferred, and will not transfer, exclusive rights in the Work to any third party;
The Work is not pending review or under consideration by another publisher;
The Work has not previously been published;
The Work contains no misrepresentation or infringement of the Work or property of other authors or third parties; and
The Work contains no libel, invasion of privacy, or other unlawful matter.

The Author agrees to indemnify and hold Publisher harmless from Author's breach of the representations and warranties contained in Paragraph 7 above, as well as any claim or proceeding relating to Publisher's use and publication of any content contained in the Work, including third-party content.

This work is licensed under a Creative Commons Attribution 4.0 International License.

Received 2024-09-29
Accepted 2025-01-19
Published 2025-03-27

Most read articles by the same author(s)

Kaisei Shiraki, Trang Nakamoto, Kozo Taguchi, Metal Ions Intercalated to Birnessite Manganese to Make High-Performance Catalyst for the Cathode of MFCs , Environmental Science & Sustainable Development: Vol. 10 Issue 1: Special Issue (2025): Building Resilient Cities: Integrating Sustainability, Climate Adaptation, and Urban Resilience
Hodaka Shimohata, Trang Nakamoto, Taguchi Kozo, Evaluation of Glucose-Infused Ceramic Separators in Microbial Fuel Cells , Environmental Science & Sustainable Development: Vol. 10 Issue 2 (2025)
Tsuyoshi Araoa, Trang Nakamoto, Kozo Taguchi, Performance enhancement of microbial fuel cells through g-C₃N₄-embedded biochar anodes , Environmental Science & Sustainable Development: Vol. 10 Issue 4 (2025)
Kozo Taguchi, Naoki Ikemoto, Trang Nakamoto, Evaluation of Dye-Sensitized Solar Cells using Rutile-Mesoporous-SiO2@TiO2/CQDs as Scattering Layer , Environmental Science & Sustainable Development: Vol. 10 Issue 4 (2025)

1. Introduction

In recent years, water pollution caused by population growth has become one of the most health-threatening problems. ¹ Among these, contamination by organic dyes is a serious problem. Organic dyes are a major pollutant of wastewater discharged in large quantities from the textile industry and other sources. These organic dyes cause significant damage to the land and the environment, and these residual dyes are toxic to humans and animals because they are not decomposed by microorganisms. ² Among these, contamination by organic dyes is a serious problem. Organic dyes are a major pollutant of wastewater discharged in large quantities from the textile industry and other sources. This organic dye is very damaging to the land and environment, and the residual dye is toxic to humans and animals because it is not decomposed by microorganisms. Physical and chemical treatment methods are gaining attention to solve these problems. However, conventional physical and chemical treatment methods have problems such as secondary contamination and long treatment cycles. Among these, the removal of organic dyes by photocatalysis is attracting attention. [³; ⁴]

Photocatalysts have been widely used and studied because of their non-toxicity, low cost, and high chemical stability. The disadvantage of TiO2, a commonly used photocatalyst, is its wide band gap of 3.2 eV, which means that only UV light is available. [³; ⁵] UV light is only about 5% of sunlight. For this reason, much research has been done over the past few decades to increase the number of usable wavelength bands. Among these methods, carbon and nitrogen loading, doping, and shape-changing are known as promising methods.

As a carbon source, carbon quantum dots (CQDs) have recently attracted attention as a new carbon nanomaterial because of their unique properties. Muhammad Shafique et al. showed that the combination of TiO₂ and CQDs broadens the optical absorption edge and allows degradation under visible light. ⁶ In addition, SiO₂@TiO₂ has been studied in various fields of particle shape change. One of the reasons why SiO₂@TiO₂ is attracting attention is that the wavelength band that can be reflected is tuned by the particle size. To reflect visible light (about 380~780nm), a particle size of about 200nm~400nm is appropriate. ⁷

Therefore, this study evaluated SiO2@TiO2 supported by CQD for more efficient removal of organic contaminants. Previous studies of TiO₂/CQDs have shown that visible light responsivity is improved by loading CQDs onto TiO₂. To utilize visible light more efficiently, TiO₂ was changed to SiO₂@TiO₂. The SiO₂@TiO₂ used was adjusted to a particle size of 200 nm to 350 nm for efficient reflection and utilization of visible light. The results showed that the photocatalytic activity of SiO2@TiO2/CQDs was enhanced, suggesting that SiO2@TiO2/CQDs can remove organic pollutants that cause water pollution more efficiently compared to SiO2@TiO2.

2. Methods

2.1. CQD fabrication

Put 0.720 g of urea (FUJIFILM Wako) in 20 ml of purified water and stir for 1 hour. Let this solution be Solution A. To this solution A, add 0.768 g of citric acid (FUJIFILM Wako) and stir for 1 hour. This solution is designated as Solution B. Solution B was transferred to a Teflon solution, and hydrothermal synthesis was performed at 200° for 6 hours. Impurities were then removed by filtration. The solution was stored in a refrigerator.

2.2. SiO₂@TiO₂/CQD

A two-step procedure was performed:

2.2.1. SiO₂

Here is a detailed explanation of how to make SiO2 shown in Figure 1.

The detailed preparation of SiO₂ is shown in the upper part of Figure 1 was carried out by adding 1.2 ml octadecyltrimethoxysilane (Tokyo Kasei Kogyo) and 4 ml TEOS (Fujifilm Wako) to 80 ml ethanol and stirring for 10 minutes. Next, 12 ml of ammonia was slowly added dropwise and stirred for 24 hours to form SiO2. The white precipitate was then washed several times with ethanol and dried.

2.2.2. SiO₂@T iO₂/CQD

This section details the preparation of the SiO2@T iO2/CQD shown in Figure 1.

In the detailed preparation of SiO₂@TiO₂/CQD shown in the lower part of Figure 1, 800 µl of TBOT (Fujifilm Wako) and SiO2 produced in step 1 were added to 80 ml of ethanol. The mixed solution was completely dispersed by ultrasound. In previous studies, 1.6 ml of purified water was slowly added dropwise. However, in this study, purified water was replaced by CQD solution and 1 ml, 1.6 ml and 3.2 ml of CQD solution were slowly dropped into the mixed solution and stirred for 6 hours. The yellow precipitate was then washed several times with ethanol and dried. The dried powder was annealed at 900° for 2 hours.

Figure 1.How to create an STC (source: by authors)

Translated with DeepL.com (free version). For SiO₂@TiO₂, the CQD solution was changed to purified water, and the same procedure was performed.

Table 1.Particle Name
Called name	Solution amount of CQD
ST	0ml
STC(1)	1ml
STC(2)	1.6ml
STC(3)	3.2ml

2.3. Photocatalytic evaluation methods

The photocatalytic activity was evaluated using model pollutants. Methylene blue (MB) (Fujifilm Wako) was used as the model contaminant. A 100 W LED floodlight was also used as the light source. UV-cut film (Azwan 2-9154-01 < 400 nm) was attached to the light source and used as a visible light source. The space from the light source to the decomposed material was fixed at 30 cm.

50 mg of the powder was mixed with 20 ml of MB solution, and the porcelain was stirred. The mixed solution was stirred for 1 hour in the dark to obtain sorption equilibrium. Then, they were irradiated with light. The mixed solution was sampled once every 30 minutes and centrifuged to remove the photocatalyst.

3. Experimental results

3.1. XRD

Comparing Figure 2 (a) and (b) shows that they are similar. This is thought to be due to the low amount of CQDs held, which is why CQDs are not detected. Analysis of the diffraction peaks from Figure 2(a) and (b) shows that both are TiO2 in the anatase phase and that SiO2 is also retained. These results indicate that incorporating CQD into the ST fabrication process does not change the crystal structure of the product.

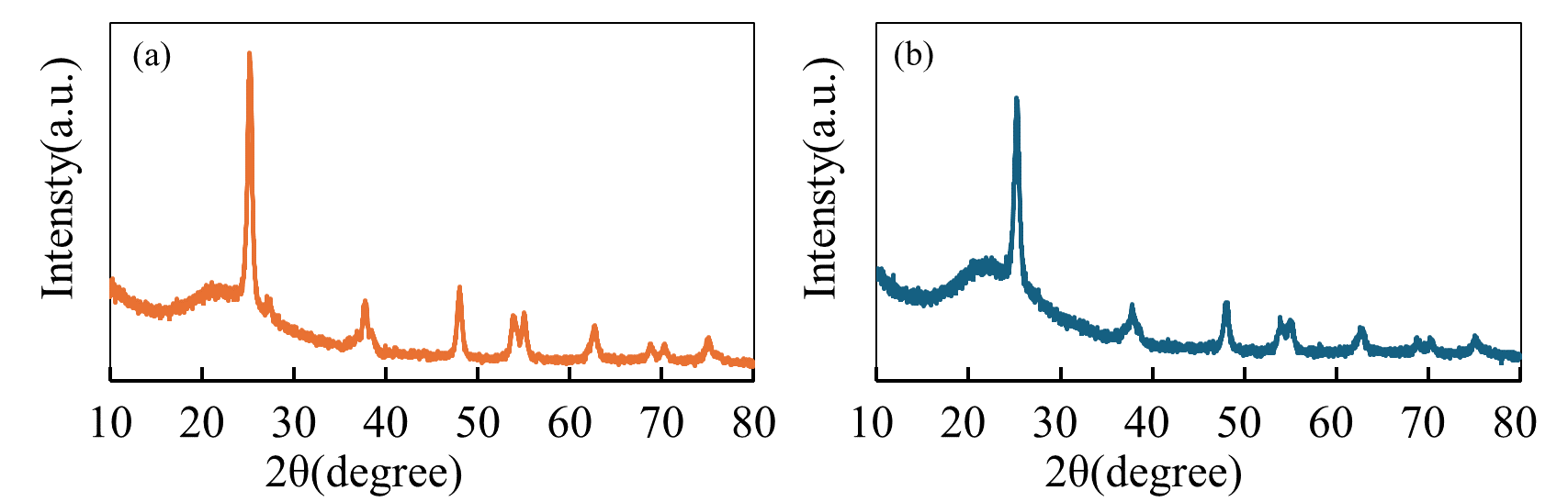

Figure 2.(a) The XRD data of ST and (b) the XRD data of STC. (source: by authors)

3.2. SEM

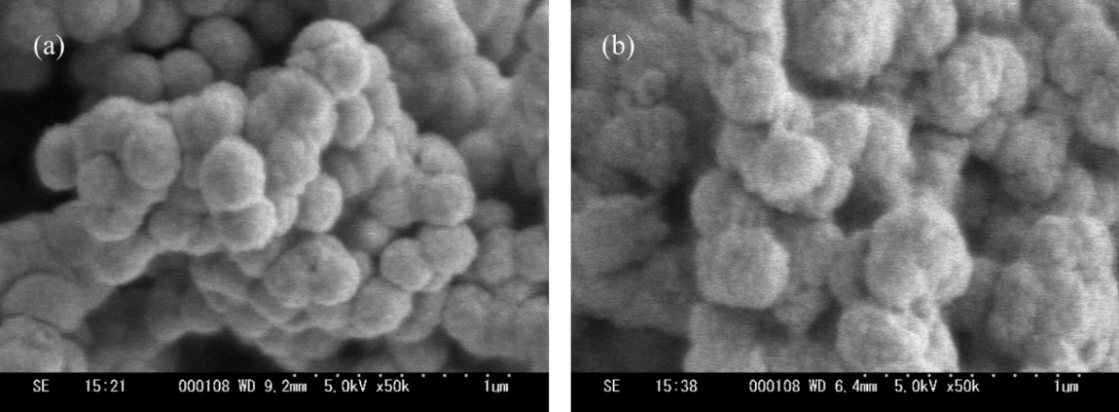

Figure 3 (a) is an SEM image of ST. The SEM data in (a) shows that this is a mesoporous ST and spherical. The particle size is also found to be in the range of 250 nm to 400 nm. Figure 3 (b) shows the SEM data of STC. The SEM data in (b) shows that it is also spherical. The size is also observed to be similar, ranging from 250 nm to 400 nm. However, when comparing (a) and (b), the surface of (b) is more uneven than that of (a), and it is thought that a higher surface area is acquired. This high surface area is believed to facilitate dye adsorption. In addition, the irregularity of the surface may cause incident light to enter the TiO2 surface from different angles, scattering light in various directions.

Figure 3.Light Absorption Rate (source: by authors)

3.3. Light Absorption Rate

Figure 4 shows the optical absorption coefficient. This shows that STC absorbs lighter than ST. Also, the difference in optical absorption between ST and STC increases from about 380 nm. These are thought to be influenced by CQD. The incorporation of CQD in the fabrication process improves the photo response in the ultraviolet region by increasing the surface area, and the visible light response is thought to be enhanced by the heterojunction of CQD and ST. It is also thought that making the surface uneven may lengthen the light path and allow more efficient use of light.

Figure 4.Light Absorption Rate(source: by authors)

3.4. Evaluation of photocatalytic activity

Figure 5 (a) shows a methylene blue adsorption experiment. This shows that the adsorption force varies with the amount of CQD. STC(2) is about 70% adsorbed. Compared to the conventional ST, the adsorption volume has been improved by approximately 60%. This is the same result confirmed in Figure 3. This indicates that particles with enhanced surface area can be produced by incorporating CQDs into ST. It is generally believed that the larger the surface area, the more active sites and the higher the photocatalytic activity. ⁸

Figure 5 (b) shows a decomposition experiment. This degradation experiment was performed under visible light. Since TiO₂ generally acts only at wavelengths in the ultraviolet region, the decomposition rate of ST is 0%. In comparison, STC(1), STC(2), and STC(3) all show progressive degradation. This indicates that the synthesis of ST and CQD could create visible light-responsive photocatalysts. STC(2) is degraded by about 50%. This indicates that, as in the adsorption experiment, the photocatalytic activity varies significantly with the amount of CQD. This is thought to be due to the fact that the larger the surface area, the more active sites and the higher the photocatalytic activity, as well as the effect of heterojunction.

Figure 5.(a) Adsorption experiment. (b) The degradation of organic matter(source: by authors)

4. Discussion and conclusions

STC showed high adsorption to MB solution and high degradation under visible light. This would be attributed to the establishment of a hetero-bonded structure with the support of CQD and ST. ⁶ This has been shown to be useful in removing organic contaminants. In the degradation of organic matter from residual dyes, STC is expected to be a particle that combines the advantages of both the physical treatment method, which is a good adsorbent for the fast processing of organic matter, and the chemical treatment method, which is a high degradation power that prevents secondary damage. However, in terms of adsorption power, it is lower than that of smoked charcoal, etc. Therefore, it is essential to study photocatalysts with higher adsorption power.

5. Recommendation

This study has shown that the addition of CQD to the SO2@TiO2 preparation process improves the surface area, which is a drawback of SiO2@TiO2, and amplifies the available wavelength range, which is a drawback of TiO2. On this basis, future research should study and optimise the light reflectance and absorptance of SiO2@TiO2/CQDs so far. This needs to be investigated for further applications, as SIO2@TiO2 has so far been used as a scattering layer in solar cells.

Acknowledgment

The abstract of this paper was presented at the Future Smart Cities (FSC) Conference – 7th Edition which was held on the 14^th - 16^th of October 2024.

Funding

This research did not receive any specific grant from funding agencies in the public, commercial, or not-for-profit sector/ individuals.

Ethics Approval

Not applicable.

Conflict of Interest

The authors declare there is no conflict.

References

Kurniawan Tonni Agustiono, Mengting Zhu, Fu Dun, Yeap Swee Keong, Othman Mohd Hafiz Dzarfan, Avtar Ram, Ouyang Tong. Functionalizing TiO2 with graphene oxide for enhancing photocatalytic degradation of methylene blue (MB) in contaminated wastewater. Journal of Environmental Management. 270, 11087
Takanabe Kazuhiro. Photocatalytic Water Splitting: Quantitative Approaches toward Photocatalyst by Design. ACS Catalysis. 2017; 7(ue (1)):8006-8022.
Mao Tan, Zha Junyan, Hu Ying, Chen Qian, Zhang Jiaming, Luo Xueke. Research Progress of TiO2 Modification and Photodegradation of Organic Pollutants. Inorganics. 2024; 12(7)
Xu Dongming, Yu Haomiao, Qin Yang, Di Yang, Jia Hongbing, Li Fengsheng, Liu Jie. TiO2–SiO2 Nanospheres for Photocatalytic Degradation of Organic Dyes. ACS Applied Nano MaterialsVolume. 2024; 7(ue 3,pp2414-2416)
Basumatary Bablu, Basumatary Rajmoni, Ramchiary Anjalu, Konwar Dimpul. Evaluation of Ag@TiO2/WO3 heterojunction photocatalyst for enhanced photocatalytic activity towards methylene blue degradation. Chemosphere. 286,131848:1-8.
Shafique Muhammad, Mahr Muhammad Shabir, Yaseen Muhammad, Bhatti Haq Nawaz. CQD/TiO2 nanocomposite photocatalyst for efficient visible light-driven purification of wastewater containing methyl orange dye. Materials Chemistry and Physics. 2022;1-13.
Nakamoto Trang, Higuchi Kakeru, Taguchi Kozo. Investigation of Rutile and Anatase Mesoporous SiO2@TiO2 Particles in the Scattering Layer of Dye-Sensitized Solar Cells. IEEJ Transactions on Electrical and Electronic Engineering. 19(2):285-287.
Kim Dong Suk, Kwak Seung-Yeop. The hydrothermal synthesis of mesoporous TiO2 with high crystallinity, thermal stability, large surface area, and enhanced photocatalytic activity. Applied Catalysis A: General. 2007; 323:110-118.
