Adaptive Strategies for Mud Shell Robotic Fabrication

Authors

  • Chaltiel Stephanie Institute of Advanced Architecture of Catalunya
  • Bravo Maite Institute of Advanced Architecture of Catalunya
  • Ibrahim Abdullah Institute of Advanced Architecture of Catalunya

DOI:

https://doi.org/10.21625/essd.v3iss2.382

Keywords:

Digital Fabrication, Monolithic Shells, Robotic Construction, Clay Additive Manufacture

Abstract

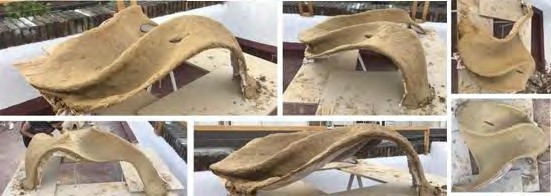

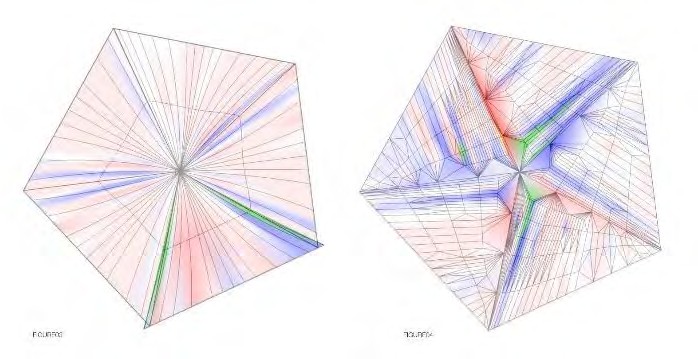

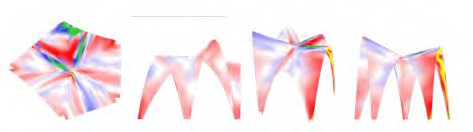

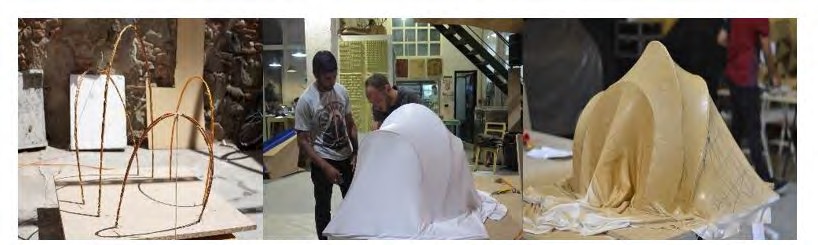

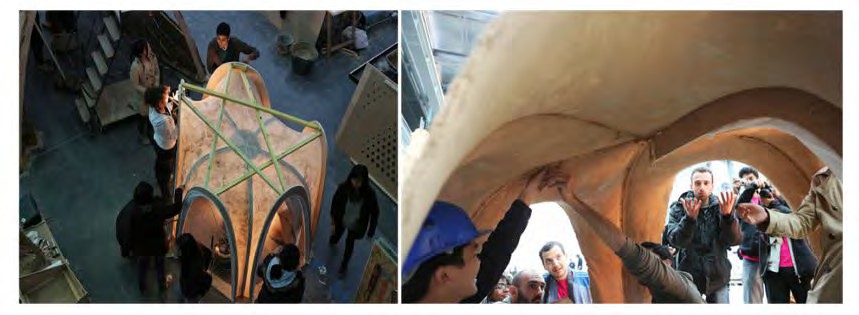

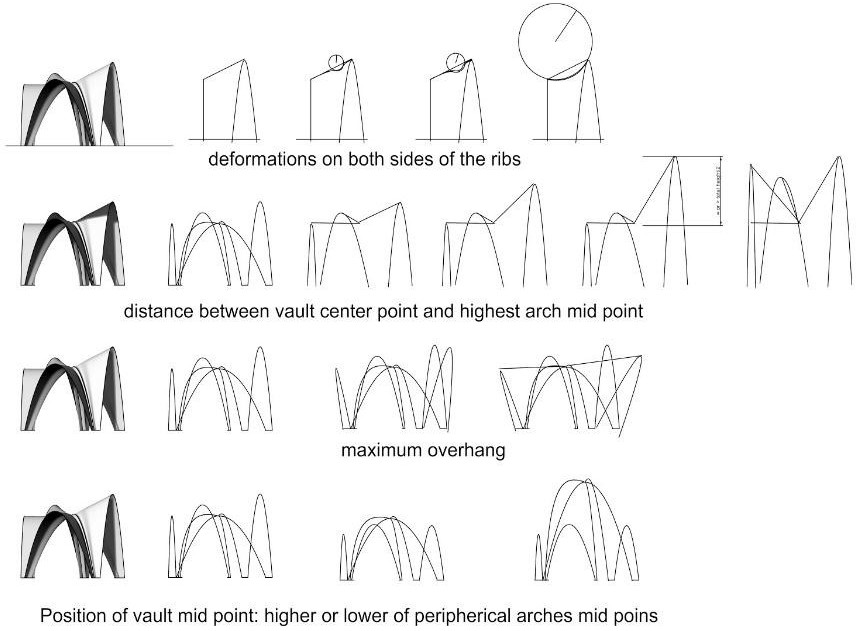

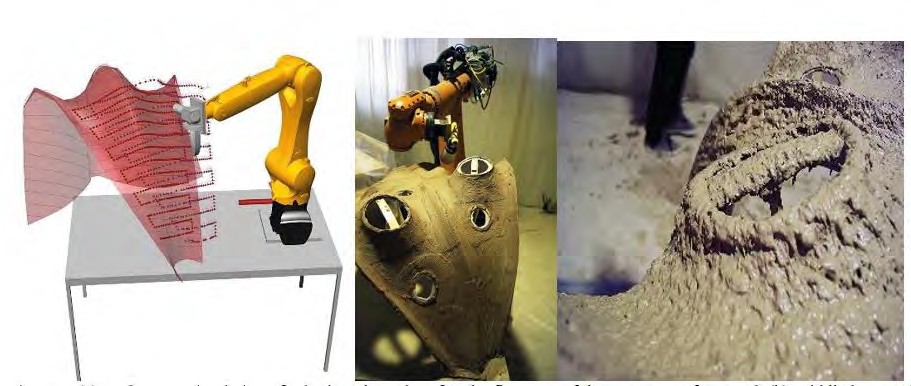

The digital fabrication of monolithic shell structures is presenting some challenges related to the interface between computational design, materialist, and fabrication techniques. This research proposes a singular method for the sequential robotic spray deposition in layers of diverse clay mixes over a temporary fabric form-work pulled in between peripheral and cross section arches. This process relies mainly on the continuity of the construction phases for stability and durability but has encountered some challenges in physical tests related to sagging, displacement, and deformations during the robotic deposition of the material. Adaptive strategies during the digital fabrication stages are proposed for a sequential exploration of the geometry, structural analysis, and construction techniques. Alternative adjustments of protocols for the robotic material deposition include both predictable and unsuspected behaviors preventing the structure to reach non-viable geometric thresholds. Two case studies of physical tests describe, analyze, and simulate some of these strategies and identify specific parameters inquiring the sequential adjustments of the robotic material deposition. These strategies will drive future full-scale tests within a sustainable use of materials and adaptive construction methods, seeking an optimized structural performance that could open a new chapter for the digital fabrication of earthen shells.

References

Bravo, M. (2013). Parametric Logics in the architecture of the XX Century. Cutting Edge in Architectural Science: Proceedings of the 47th. International Conference of the Architectural Science Association.(pp. 147-156).

Burry, J., & Burry, M. (2012). The new mathematics of architecture. London: Thames & Hudson.

Chaltiel, S., & Bravo, M. (2017). Monolithic Earthen Shells Robotic Fabrication. In The proceedings of the ACADIA conference. Boston.

Coar, L., Cox, M., Adriaenssens, S., & De Laet, L. (2017). The design and construction of fabric formed ice shells with bending active frames utilizing principle stress patterns. In Interfaces: Architecture, Engineering, Science, Annual Meeting of the International Association of Shell & Spatial Structures (IASS) in Hamburg. Retrieved from https://structurae.net/literature/conference-paper/design-and-construction-of-fabric-formed-ice-shells-with-bending-active-frames-utilizing-principle-stress-patterns

Costanza, D. (2017). ACADIA 2017: Disciplines Disruption: Proceedings of the 37th Annual Conference of the Association for Computer Aided Design in Architecture: Massachusetts Institute of Technology, School of Architecture Planning, Department of Architecture(p. 100). United States: Association for Computer Aided Desifgn in Architecture (ACADIA).

Galbiati, P.A., El Bahar, B., Slabbinck E., Solly, J., Knippers, J. (2017). Irregular cable nets: exploring irregularity as a driver for form and structure. In Interfaces: Architecture, Engineering, Science, Annual Meeting of the International Association of Shell & Spatial Structures (IASS) in Hamburg.

Huijben, F., Van Herwijnen, F., Nijsse, R., & U-Bletzinger, K. (n.d.). Concrete Shell structures revisited: Introducing a new lo-tech construction method using vacumatics formwork. (E. Oñate & B. Kröplin, Eds.). pp. 409-420.

Tam, K. M. M., Mueller, C. T., Coleman, J. R., & Fine, N. W. (2016). Stress line additive manufacturing (slam) for 2.5-d shells. Journal of the International Association for Shell and Spatial Structures, 57(4), 249-259.

Van Hennik, P. C., & Houtman, R. (2008). Pneumatic formwork for irregular curved thin shells. In Textile Composites and Inflatable Structures II (pp. 99-116). Springer, Dordrecht.

Van Mele, T., & Block, P. (2011). A novel form finding method for fabric formwork for concrete shells. Journal of the International Association for Shell and Spatial Structures, 52(4), 217-224.

Veenendaal, D., & Block, P. (2015, August). Design process of prestressed membrane formworks for thin-shell structures. In Proceedings of IASS Annual Symposia (Vol. 2015, No. 1, pp. 1-12). International Association for Shell and Spatial Structures (IASS).

Downloads

Published

2018-12-31

How to Cite

Stephanie, C., Maite, B., & Abdullah, I. (2018). Adaptive Strategies for Mud Shell Robotic Fabrication. International Journal of Environmental Science & Sustainable Development, 3(2), 64–74. https://doi.org/10.21625/essd.v3iss2.382
