Circularity in Concrete Construction: Investigating the Interplay Between Multiple Softwood Formwork Reuse and Varying Workability on Hardened Concrete Properties

Zaheer  Doomah; Sailesh  Kumar Singh Nunkoo; Alvinsing Kokil; Bhavesh Nunkoo

doi:10.21625/essd.v11i1.1291

Zaheer Doomah , Sailesh Kumar Singh Nunkoo , Alvinsing Kokil , Bhavesh Nunkoo

https://doi.org/10.21625/essd.v11i1.1291

Issue
Vol. 11 Issue 1 (2026)

Submitted
February 8, 2026

Accepted
April 16, 2026

Published
June 30, 2026

Keywords:

Circular economy, Softwood formwork, Hardened concrete, Workability, Admixtures

PDF XML

Abstract

The construction industry accounts for 33% of the global emissions of greenhouse gases and makes use of a whopping 40% of global resources. In addition, statistics reveal that over 10 billion tons of construction waste are produced yearly worldwide. It is therefore essential to promote circular economy principles in this sector to ensure lower wastage of resources and greater sustainability. Along these lines, this study aimed to investigate the possibility of reducing the demand for formwork by studying the effects of reusing pine formwork with differing concrete workability on the properties of hardened concrete. For this purpose, concrete cubes of Grade 35 were cast into four formwork categories, namely steel (control for this study), new pine softwood formwork, pine softwood formwork used once on site, and pine softwood formwork used thrice on site, utilising concrete mixes with varying water-to-cement ratios. Three tests were conducted to investigate the strength and durability of the concrete, namely compressive strength, water absorption, and chloride content penetration. The findings of this study demonstrated that pine softwood formwork has the potential to be reused up to a maximum of three times if utilised with a water-reducing admixture. The results of this study can help to promote circular economy principles in the construction sector by informing engineers and other construction professionals of the potential scenarios for reuse of the softwood formwork and adapting the mix design accordingly, while also developing good site management principles for reducing waste from formwork.

Full text article

Generated from XML file

References

Abuimara, T., Haddad, M., Aldhaheri, A., Alzubaidi, M., Alyafei, M., & Alderei, R. (2025). House of the Future: Designing a Net-Zero Energy Housing Archetype for Emirati Families. Environmental Science & Sustainable Development, 10(3), 67–80. https://doi.org/10.21625/essd.v10i3.1224

Ahmad, J., Arbili, M. M., Majdi, A., Althoey, F., Deifalla, F. A., & Rahmawati, C. (2022). Performance of concrete reinforced with jute fibers (natural fibers): A review. Journal of Engineered Fibers and Fabrics, 17. https://doi.org/10.1177/15589250221121871

Aïssoun, B. M., Gallias, J.-L., & Khayat, K. H. (2017). Influence of formwork material on transport properties of self-consolidating concrete near formed surfaces. Construction and Building Materials, 146, 329–337. https://doi.org/10.1016/j.conbuildmat.2017.04.104

Akanbi, L. A., Oyedele, L. O., Akinade, O. O., Ajayi, A. O., Davila Delgado, M., Bilal, M., & Bello, S. A. (2018). Salvaging building materials in a circular economy: A BIM-based whole-life performance estimator. Resources, Conservation and Recycling, 129, 175–186. https://doi.org/10.1016/j.resconrec.2017.10.026

Akhimien, N. G., Latif, E., & Hou, S. S. (2021). Application of circular economy principles in buildings: A systematic review. Journal of Building Engineering, 38, 102041. https://doi.org/10.1016/j.jobe.2020.102041

Altun, M. G., Özen, S., & Mardani-Aghabaglou, A. (2020). Effect of side chain length change of polycarboxylate-ether-based high-range water-reducing admixture on properties of self-compacting concrete. Construction and Building Materials, 246, 118427. https://doi.org/10.1016/j.conbuildmat.2020.118427

British Standards Institution. (1983a). Testing concrete: Part 125: Methods for mixing and sampling fresh concrete in the laboratory, (BS 1881:Part 125, 1983). UK: British Standards Institution.

British Standards Institution. (1983b). Testing concrete: Part 102: Method for determination of slump (BS 1881:Part 102, 1983). UK: British Standards Institution

British Standards Institution. (1983c). Testing concrete: Part 122: Method for determination of water absorption, (BS 1881:Part 122, 1983). UK: British Standards Institution

British Standards Institution. (1988). Testing concrete: Part 124: Method for determination of chloride content, (BS 1881:Part 124, 1988). UK: British Standards Institution.

British Standards Institution. (2019). Testing hardened concrete: Compressive strength of test specimens (BS-EN 12390:Part 3, 2019). UK: British Standards Institution

Building Research Establishment. (1988). Design of normal concrete mixes. London: Construction Research Communications Ltd.

Bukhari, S. J. S., & Khanzadeh Moradllo, M. (2025). Multicriteria performance assessment of ‘low w/c + low cement + high dosage admixture’ Concrete: Environmental, economic, durability, and mechanical performance considerations. Journal of Cleaner Production, 523, 146419. https://doi.org/10.1016/j.jclepro.2025.146419

Charef, R., Lu, W., & Hall, D. (2022). The transition to the circular economy of the construction industry: Insights into sustainable approaches to improve the understanding. Journal of Cleaner Production, 364, 132421. https://doi.org/10.1016/j.jclepro.2022.132421

Cheng, B., Huang, J., Lu, K., Li, J., Gao, G., Wang, T., & Chen, H. (2022). BIM-enabled life cycle assessment of concrete formwork waste reduction through prefabrication. Sustainable Energy Technologies and Assessments, 53, 102449. https://doi.org/10.1016/j.seta.2022.102449

Dapper, S. T. H., Bersch, J. D., & Masuero, A. B. (2024). Impact of Formwork Materials on Concrete Surface Quality. Buildings, 14(11), 3450. https://doi.org/10.3390/buildings14113450

Das, R., Bhattacharya, I., & Saha, R. (2016). Comparative study between different types of formwork. International Research Journal of Advanced Engineering and Science, 1(4), 173-175.

De Souza Barros, D., Lima, M. D. R., Massuque, J., dos Santos, E. V., Guirardi, B. D., Dias Junior, A. F., Bufalino, L., Silveira, E. A., Carneiro, A. de C. O., Trugilho, P. F., & de Paula Protásio, T. (2025). Advancing circular economy in Amazonian forest management: A comparative study of the effects of wood waste segregation and traditional carbonization on charcoal properties, combustibility, and spontaneous combustion risk. Circular Economy, 4(3), 100152. https://doi.org/10.1016/j.cec.2025.100152

Demissew, A. (2022). Comparative Analysis of Selected Concrete Mix Design Methods Based on Cost-Effectiveness. Advances in Civil Engineering, 2022(1), 4240774. https://doi.org/10.1155/2022/4240774

Devi, K., & Yadav, T. (2023). Cost Comparison of Different Types of Formworks. Journal of Building Material Science, 5(1), 32–38. https://doi.org/10.30564/jbms.v5i1.5515

Gappmaier, P., Reichenbach, S., & Kromoser, B. (2024). Advances in formwork automation, structure, and materials in concrete construction. Automation in Construction, 162, 105373. https://doi.org/10.1016/j.autcon.2024.105373

Geldermans, R. J. (2016). Design for Change and Circularity – Accommodating Circular Material & Product Flows in Construction. Energy Procedia, 96, 301–311. https://doi.org/10.1016/j.egypro.2016.09.153

Guerra, B. C., & Leite, F. (2021). Circular economy in the construction industry: An overview of United States stakeholders’ awareness, major challenges, and enablers. Resources, Conservation and Recycling, 170, 105617. https://doi.org/10.1016/j.resconrec.2021.105617

Jiang, Q., Yu, C., & Zhou, M. (2025). Aesthetic properties of concrete surfaces: An experimental study employing three typical formworks with emphasis on reusability. Case Studies in Construction Materials, 22, e04885. https://doi.org/10.1016/j.cscm.2025.e04885

Khalfan, M. (2019). Lessons Learned from the First Passivhaus Building in Qatar. Environmental Science & Sustainable Development, 4(3), 77–91. https://doi.org/10.21625/essd.v4i3.678

Li, W., Lin, X., Bao, D. W., & Min Xie, Y. (2022). A review of formwork systems for modern concrete construction. Structures, 38, 52–63. https://doi.org/10.1016/j.istruc.2022.01.089

Liebringshausen, A., Eversmann, P., & Göbert, A. (2023). Circular, zero-waste formwork—Sustainable and reusable systems for complex concrete elements. Journal of Building Engineering, 80, 107696. https://doi.org/10.1016/j.jobe.2023.107696

Lokesh, G., Nantha Kumar, P., Aishwarya, N., Parthiban, P., & Ponshanmugakumar, A. (2023). Experimental study of the effect of water-reducing admixtures on concrete. Materials Today: Proceedings. https://doi.org/10.1016/j.matpr.2023.05.163

Mei, Z., Xu, M., Luo, S., Tan, Y., & Li, H. (2022). Concrete formwork reuse in a supply chain with dynamic changes using ABMS and discrete events. Journal of Cleaner Production, 332, 130038. https://doi.org/10.1016/j.jclepro.2021.130038

Mukhopadhyay, B., Bose, R., Roy, S. (2022). A Strategic Method of Proper Resizing and Reusing of Construction Formwork Materials. In: Patnaik, S., Kountchev, R., Jain, V. (eds) Smart and Sustainable Technologies: Rural and Tribal Development Using IoT and Cloud Computing. Advances in Sustainability Science and Technology. Springer, Singapore. https://doi.org/10.1007/978-981-19-2277-0_34

Neville, A. M. (2017). Properties of concrete. Pitman Publishing.

Nilimaa, J., Gamil, Y., & Zhaka, V. (2023). Formwork Engineering for Sustainable Concrete Construction. CivilEng, 4(4), 1098-1120. https://doi.org/10.3390/civileng4040060

Piasta, W., & Zarzycki, B. (2017). The effect of cement paste volume and w/c ratio on shrinkage strain, water absorption, and compressive strength of high-performance concrete. Construction and Building Materials, 140, 395–402. https://doi.org/10.1016/j.conbuildmat.2017.02.033

Pronk, A., Brancart, S., & Sanders, F. (2022). Reusing Timber Formwork in Building Construction: Testing, Redesign, and Socio-Economic Reflection. Urban Planning, 7(2), 81-96. https://doi.org/10.17645/up.v7i2.5117

Rubaratuka, I. A. (2013). Influence of formwork materials on the surface quality of reinforced concrete structures. International Journal of Engineering and Applied Sciences, 4(5). https://citeseerx.ist.psu.edu/document?repid=rep1&type=pdf&doi=3c26a9b8c2d82153cfb80ee486d1553b37c20529

Shkirman, K., Stoppato, A., Giussani, F., & Pezzutto, S. (2025). Investigating circularity in the construction and demolition sector through remote sensing: A case study of Bolzano/Bozen, Italy. Circular Economy, 4(3), 100156. https://doi.org/10.1016/j.cec.2025.100156

Terzioglu, T., Polat, G., & Turkoglu, H. (2021). Analysis of Formwork System Selection Criteria for Building Construction Projects: A Comparative Study. Buildings, 11(12), 618. https://doi.org/10.3390/buildings11120618

Weru, J. (2018). Why 28 days of concrete compressive strength? LinkedIn. Available at: https://www.linkedin.com/pulse/why-28-days-concrete-compressive-strength-jane-weru/ (Accessed: 07 April 2024).

Xu, Y., Liu, S., & Heisel, F. (2024). Towards sustainable construction waste management: Study on a disassemblable brick partition wall for the architecture, construction, and engineering industry. Circular Economy, 3(1), 100078. https://doi.org/10.1016/j.cec.2024.100078

Yang, J., Zhao, H., Zeng, J., Su, Y., Zhu, M. et al. (2024). The Influence of Chemical Admixtures on the Fluidity, Viscosity, and Rheological Properties of Ultra-High Performance Concrete. Fluid Dynamics & Materials Processing, 20(10), 2163–2181. https://doi.org/10.32604/fdmp.2024.055448

Yang, L., Liu, G., Gao, D., & Zhang, C. (2021). Experimental study on water absorption of unsaturated concrete: W/c ratio, coarse aggregate, and saturation degree. Construction and Building Materials, 272, 121945. https://doi.org/10.1016/j.conbuildmat.2020.121945

Zeng, S., Tanveer, A., Fu, X., Gu, Y., & Irfan, M. (2022). Modeling the influence of critical factors on the adoption of green energy technologies. Renewable and Sustainable Energy Reviews, 168, 112817. https://doi.org/10.1016/j.rser.2022.112817

Zhang, Y. (2018). Rheological Properties of Fresh Cement Pastes. In: Study on Microstructure and Rheological Properties of Cement-Chemical Admixtures-Water Dispersion System at Early Stage. Springer Theses. Springer, Singapore. https://doi.org/10.1007/978-981-10-4570-7_3

Authors

Zaheer Doomah

[email protected] (Primary Contact)

Sailesh Kumar Singh Nunkoo

Alvinsing Kokil

Bhavesh Nunkoo

Doomah, Z. ., Kumar Singh Nunkoo , S., Kokil , A., & Nunkoo, B. (2026). Circularity in Concrete Construction: Investigating the Interplay Between Multiple Softwood Formwork Reuse and Varying Workability on Hardened Concrete Properties . Environmental Science & Sustainable Development, 11(1), 116–129. https://doi.org/10.21625/essd.v11i1.1291

Download Citation

This work is licensed under a Creative Commons Attribution 4.0 International License.

The Author shall grant to the Publisher and its agents the nonexclusive perpetual right and license to publish, archive, and make accessible the Work in whole or in part in all forms of media now or hereafter known under a Creative Commons Attribution 4.0 License or its equivalent, which, for the avoidance of doubt, allows others to copy, distribute, and transmit the Work under the following conditions:

Attribution: other users must attribute the Work in the manner specified by the author as indicated on the journal Web site;

With the understanding that the above condition can be waived with permission from the Author and that where the Work or any of its elements is in the public domain under applicable law, that status is in no way affected by the license.

The Author is able to enter into separate, additional contractual arrangements for the nonexclusive distribution of the journal's published version of the Work (e.g., post it to an institutional repository or publish it in a book), as long as there is provided in the document an acknowledgement of its initial publication in this journal.
Authors are permitted and encouraged to post online a pre-publication manuscript (but not the Publisher's final formatted PDF version of the Work) in institutional repositories or on their Websites prior to and during the submission process, as it can lead to productive exchanges, as well as earlier and greater citation of published work (see The Effect of Open Access). Any such posting made before acceptance and publication of the Work shall be updated upon publication to include a reference to the Publisher-assigned DOI (Digital Object Identifier) and a link to the online abstract for the final published Work in the Journal.
Upon Publisher's request, the Author agrees to furnish promptly to Publisher, at the Author's own expense, written evidence of the permissions, licenses, and consents for use of third-party material included within the Work, except as determined by Publisher to be covered by the principles of Fair Use.
The Author represents and warrants that:

The Work is the Author's original work;
The Author has not transferred, and will not transfer, exclusive rights in the Work to any third party;
The Work is not pending review or under consideration by another publisher;
The Work has not previously been published;
The Work contains no misrepresentation or infringement of the Work or property of other authors or third parties; and
The Work contains no libel, invasion of privacy, or other unlawful matter.

The Author agrees to indemnify and hold Publisher harmless from Author's breach of the representations and warranties contained in Paragraph 7 above, as well as any claim or proceeding relating to Publisher's use and publication of any content contained in the Work, including third-party content.

This work is licensed under a Creative Commons Attribution 4.0 International License.

Received 2026-02-08
Accepted 2026-04-16
Published 2026-06-30

51. Introduction

The construction industry is one of the largest consumers of natural resources and waste generators worldwide and is therefore under increasing pressure to address its environmental impacts while improving efficiency ((Abuimara et al., 2025); (Akanbi et al., 2018); (Akhimien et al., 2021); (Guerra & Leite, 2021); (Khalfan, 2019)). Transitioning from a linear economy model promoting single-use of materials to a circular economy model has been touted as a promising strategy for addressing the global sustainability challenges being faced by the construction sector (Charef et al., 2022)(Geldermans, 2016). Circularity in construction enables the repurposing and recycling of used and by-product materials, and this provides significant potential for reducing the use of new resources and landfill wastage (Shkirman et al., 2025)(Zeng et al., 2022)(Xu et al., 2024). Formwork made of wood, metal, and other materials is widely used in concrete construction to provide support and mould elements into various shapes (Li et al., 2022)(Mei et al., 2022), with research showing that this accounts for approximately 25% of the total project costs (Liebringshausen et al., 2023). However, formwork made of timber tends to be considered a single-use material and is discarded as concrete demolition waste after being used once. The circular economy, therefore, provides a sustainable framework for utilising and valorising wood waste from concrete construction sites, while also reducing the need to cut down more trees ((Souza Barros et al., 2025); (Mei et al., 2022)).

It is well documented that hardened concrete properties, such as strength and durability, are affected by several factors, including cement characteristics, aggregate types, water-to-cement ratio, admixture properties, mixing time, temperature, and the production process (Demissew, 2022). Amongst these, the water-to-cement ratio also plays an important role in the workability of fresh concrete, which refers to the ease with which concrete can be mixed, placed, compacted, and finished while remaining homogeneous (Ahmad et al., 2022). Varying levels of workability, or slump, are used depending on the nature of the construction component, with higher slumps used in structures with congested reinforcement and lower slumps for more conventional concrete applications (Neville, 2017). However, the higher water-to-cement ratios needed for greater workability also lead to a reduction in the strength and durability of concrete ((Piasta & Zarzycki, 2017); (Yang et al., 2021)). Admixtures have been used successfully to improve the fluidity of concrete and thus reduce the water-to-cement content, thereby improving hardened concrete properties ((Altun et al., 2020); (Bukhari & Khanzadeh Moradllo, 2025); (Zhang, 2018)).

Existing research has established the significance of the formwork in producing concrete with good characteristics, and that reused formwork can negatively impact the properties of hardened concrete (Jiang et al., 2025)(Rubaratuka, 2013). However, there has been little research on the potential to mitigate this adverse impact through the use of admixtures such as plasticisers and water reducers, which are commonly used to improve concrete workability without adding extra water (Lokesh et al., 2023)(Yang et al., 2024). Understanding the interplay between reused formwork and the use of admixtures is therefore essential, as this will provide much-needed insight into the characteristics of resulting concrete and can lead to a greater adoption of reused formwork on construction sites. This study, therefore, aims to investigate the combined effects of workability variation and formwork reuse on the properties of hardened concrete. By addressing this critical gap, the research seeks to advance sustainable and durable construction practices, contributing to a more resilient built environment, particularly in regions like Mauritius, where coastal infrastructure is increasingly vulnerable to climate change and saline conditions.

1.1. Reuse of formwork materials

Modern concrete construction uses various types of formwork made from different materials: timber, plywood, steel, aluminium, and plastic, with each having its own advantages and disadvantages in terms of cost, durability, flexibility, and environmental impact ((Das et al., 2016); (Devi & Yadav, 2023)). Formwork selection can also have a major impact on the surface quality and finish of concrete being cast, as well as its strength development and durability (Nilimaa et al., 2023)(Terzioglu et al., 2021). With the need to reduce material usage and adopt circular economy principles, more emphasis has been laid recently on reusable formwork that can be removed after use, cleaned, and used again (Gappmaier et al., 2024). Thus, several studies have been carried out to assess the potential of formwork reuse and have shown that, despite its vulnerabilities, timber and wooden formworks have good potential for being recycled and reused on construction sites. These are briefly summarised below:

A study by (Mukhopadhyay et al., 2022) on the resizing and reuse of construction materials identified several advantages of the reuse of timber formwork. The benefits included ease of management and handling of the used timber formwork materials for reuse, the cost efficiency achieved through reduced material usage, and improved waste generation control.

In their review study on formwork systems, (Li et al., 2022) carried out a comparison of several materials, including wooden, metal, fabric, and 3D-printed plastic formwork. They posited that although the material cost for wooden formwork is lower than for metal formwork, they have higher labour costs and offer only a medium quality surface finish. However, the wooden formwork can be used for a range of shapes, including complex geometries, and can also be recycled and reused.

(Pronk et al., 2022) adopted a case study approach to assess the potential for reuse of wooden formwork through the use of 10 construction projects. They found that although large amounts of timber formwork are used, their reuse is still limited, with the maximum number of use cycles as formwork being determined by the roughness of the formwork and the project characteristics. The authors eventually posited that although timber formwork may not be reused for elements that are visible and need to be aesthetically pleasing, they offer vast potential for other purposes, as they still possess good mechanical properties. However, the study also pointed out that several challenges need to be overcome for mainstreaming material reuse, as although waste and cost reduction can be achieved by using reclaimed materials, the design and construction process is rendered more complex and can increase the total project budget owing to additional logistics and planning issues.

Using a mathematical modelling approach, (Mei et al., 2022) argued that reusing formwork among several construction sites led to a reduction of the total cost across the whole supply chain while improving sustainability. They further posited that the reuse of materials could also prevent the underutilisation of undesired materials through the development of detailed material planning and hence lead to a significant reduction in the construction schedule as well.

(Cheng et al., 2022) elaborated on the reuse of timber formworks for traditional in-situ concrete casting. They discussed the actual use of this type of formwork, which is usually purchased in standard sizes before being processed according to the design and construction requirements, thus generating waste. Moreover, with construction schedule requirements, several sets of timber formwork are required to prevent delays, leading to a surplus of materials on the site. The authors also posited that the reuse of timber formwork is limited to 3 – 8 times before being discarded due to large deformations and significant material accumulation on the surface.

1.2. Impacts of formwork materials on concrete properties

There has only been sparse research on the impacts of the reuse of wooden formwork on concrete properties, with the few studies summarised below:

(Jiang et al., 2025) investigated the impact of the choice of three formwork materials (plastic, plywood, and steel) on the aesthetic properties of concrete surfaces and found that the number and frequency of bugholes were highest for steel formwork, while minimal for the plastic one. Moreover, in terms of concrete surface roughness, the highest values were obtained for plywood, followed by steel and lastly plastic, and this mirrored the increasing formwork roughness closely after several reuses of these materials. It was also determined that while the appearance of concrete made using the different formworks was similar initially, larger than 10 times plywood formwork reuse led to a significant concrete colour difference. The authors finally concluded that the quality of concrete decreases with increasing reuse, depending on the formwork material, with the plastic formwork being mainly subject to physical damage due to friction and paste adhesion, while the plywood and metal formworks suffered from both physical and chemical damage, mainly as a result of alkali corrosion. The study also posited that increasing the reuse of plywood formwork led to a dusting phenomenon on its surface, which increased air void defects and roughness of the concrete surface, leading to poor-quality concrete.

In another study to evaluate the impacts of formwork materials on the sorptivity of concrete cover and the durability of concrete, (Aïssoun et al., 2017) compared plywood and PVC formworks, with the former being rougher and more absorbent. They observed that while the smooth and non-absorbent PVC formwork did not have any major impact on the rheological properties of fresh concrete, the rough and absorbent plywood surface led to a reduction in the water-to-cement (w/c) ratio and fluidity of the cement paste. They also noted that the wall effect, i.e., the movement of coarse aggregates near the formwork surface, was greater for plywood due to the increased water absorption and surface roughness, leading to a decrease in movement of coarse aggregates near the surface and therefore a higher packing density. Thus, concrete cast in plywood formwork had lower sorptivity of concrete cover and ultimately higher durability.

Earlier research by (Rubaratuka, 2013) found that the use of absorbent formwork materials had a beneficial effect on concrete surface properties, with an increase in concrete strength and hence durability. The author compared 4 types of materials, namely softwood timber, hardwood timber, plywood, and steel, and concluded that concrete compressive strength was highest for the softwood and plywood formwork and lowest for the steel formwork. This was explained by the fact that softwood formwork had the greatest water absorption and thus allowed greater dissipation of water and entrapped air that migrated to the interface of concrete and formwork.

1.3. Impacts of water-reducing admixtures on concrete properties

The mechanism of action and impacts of water-reducing admixtures on concrete properties are well documented in the literature. This type of admixture allows for a reduction in the water content and thus a lower w/c without decreasing the workability and the slump range required, thereby leading to concrete mixes achieving higher strength, density, and durability (Bukhari & Khanzadeh Moradllo, 2025). Moreover, using admixtures allows achieving the required concrete grade with lower cement content while also making the task of concrete placement easier in difficult site conditions. Conventional water-reducing admixtures allow for a reduction in the water content by at least 5% and thus allow for densely packed cement grains for higher durability (Lokesh et al., 2023).

2. Methodology

This section discusses the materials and the test methods used for the study.

2.1. Materials

In Mauritius, pine timber formwork is widely used due to its versatility and local availability, especially in residential and small-scale projects. Traditionally treated as a single-use material, timber formwork contributes significantly to waste and environmental degradation. Therefore, for this study, pine timber formwork has been used. Three categories of formwork were considered: new formwork, formwork used once (1^st use formwork), and formwork already used three times (3^rd use formwork). These formworks were all obtained from the same site to ensure they all experienced the same working conditions in terms of weather and handling. Steel moulds were used as the control for comparing the results obtained. Pictures of the formworks used are shown in Figure 1 below.

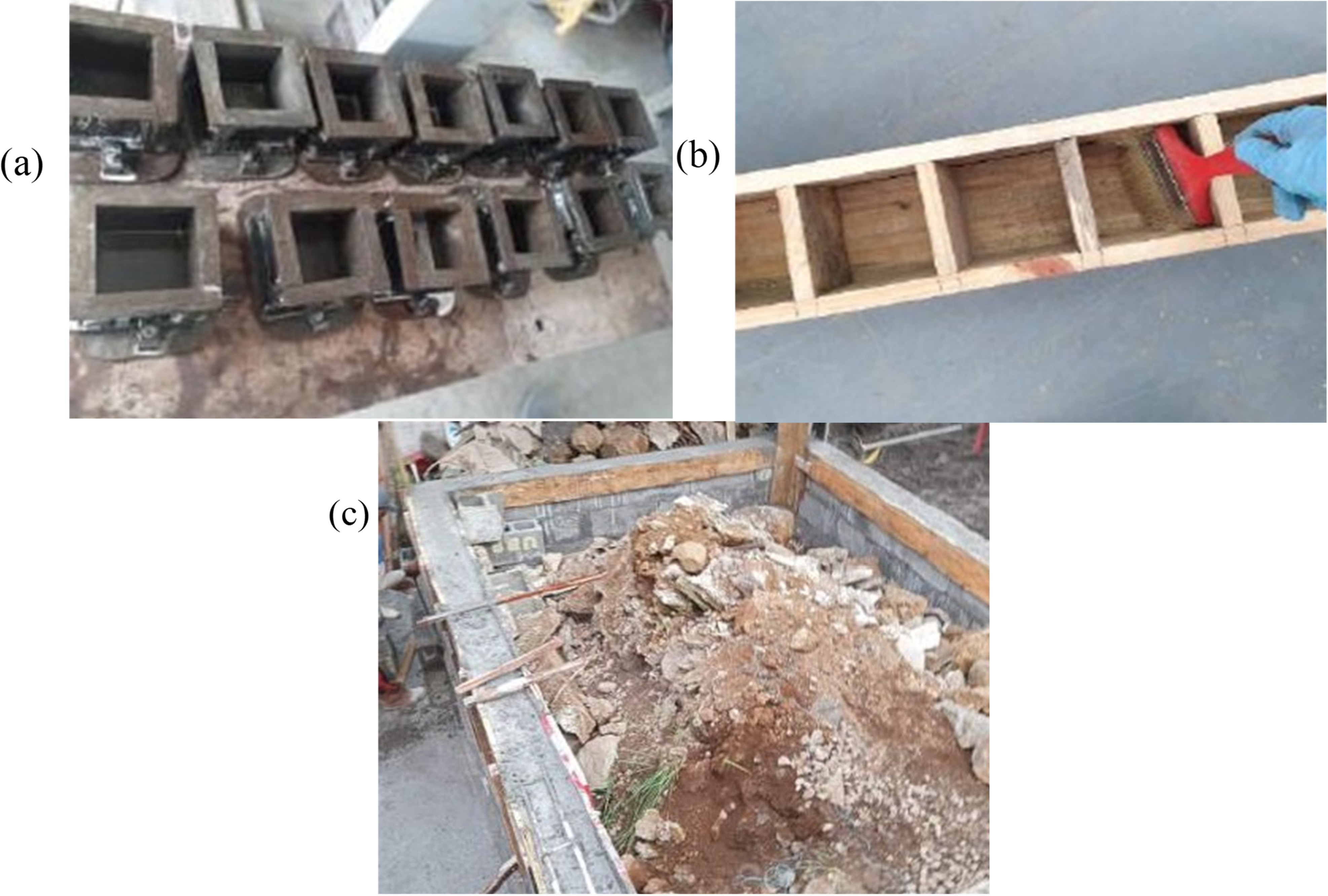

Figure 1.(a) Steel moulds, (b) New formwork, (c) Used formwork from the site.

The other materials used were also adopted based on usual site practices to prepare the different mixes of concrete considered in the research: Ordinary Portland Cement (CEM II 42.5), fine aggregates (0-4 mm), coarse aggregates (6- 10 mm, 10-14 mm, and 14- 20 mm), and tap water. A liquid water-reducing concrete admixture was used in this case, namely Sika Plastiment R.

2.2. Concrete sample preparation

Concrete Grade 35 was used for this study, with 3 different mixes considered, each having different slumps. Mix 1 consisted of concrete with a slump of 30-60mm, while both Mix 2 and Mix 3 were designed for a 60-180 slump, with the difference that Mix 3's slump was achieved with the use of an admixture and reduced water content. The BRE method (Establishment, 1988) was used to design the concrete mixes, and a mix proportion of 1:1:1 was used for the coarse aggregate (6- 10 mm, 10-14 mm, and 14- 20 mm). In total, 144 cubes of 100x100x100mm were cast, which included samples for the steel control. The casting was carried out based on BS 1881:Part 125:1983 (Institution, 1983). Table 1 shows a summary of the composition of the different mixes for 1m³ of concrete. The slump was verified after casting using the slump test in accordance with BS 1881: Part 102:1983 (Institution, 1983) procedures.

Table 1.Concrete mix design.
Concrete Mix	Mix 1	Mix 2	Mix 3
Cement strength class	42.5	42.5	42.5
Cement (kg/m³)	385	410	385
Water (kg/m³)	260	275	226
Fine aggregate (kg/m³)	760	840	760
Total Coarse aggregate (kg/m³)	1050	915	1050
Admixture (cc/100kg cement)	-	-	300

Figure 2 illustrates the slump test and demoulding of the cubes for curing and testing. Curing was done according to normal BS test procedures, with the cubes demoulded and immersed completely in a water tank until testing.

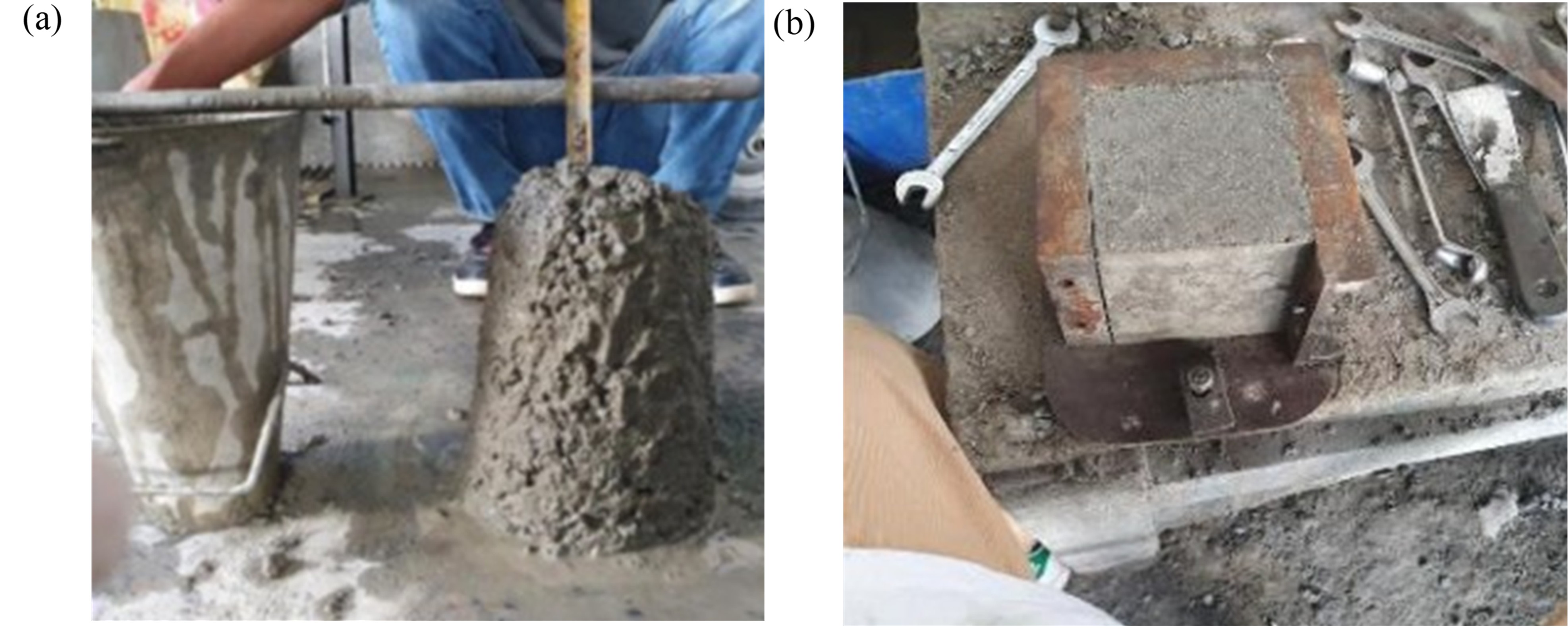

Figure 2.(a): Slump test, (b) Demoulding of concrete cube.

For this study, 3 tests were considered, namely the compressive strength test, the water absorption test, and the chloride content test. All these tests were carried out as per the standards, as shown in Table 2 below. The tests were performed after allowing the samples to cure for 7 and 28 days at room temperature.

Table 2.Test standards used for concrete testing.
Test Performed	Standards
Compressive Strength	BS EN 12390-3:2019 (Institution, 2019)
Water Absorption	BS 1881-122:1984 (Institution, 1983)
Chlorine ion content	BS1881-124:1988 (Institution, 1988)

3. Results

This section discusses the results obtained from the tests carried out on the concrete samples.

3.1. Concrete compressive strength

The test was performed based on BS-EN 12390-3:2019. The test was carried out on the 7th and 28th day on compressive strength. Three individual samples were used for all compressive strength tests carried out. The results are illustrated in Figure 3. A total of 144 cubes were cast: 36 cubes were cast for each mould type, with 12 for each of the 3 mixes to be used as follows: 3 for 7th day compressive testing, 3 for 28th day testing, 3 for water absorption test, and another 3 for chloride testing. Each test was hence replicated 3 times. The mean values of the concrete compressive strengths were calculated and used for each mix and formwork type. It was noted that for all mixes, standard deviation values were less than 5.0 MPa, as recommended by BS-EN 12390-3:2019, thus indicating good quality concrete.

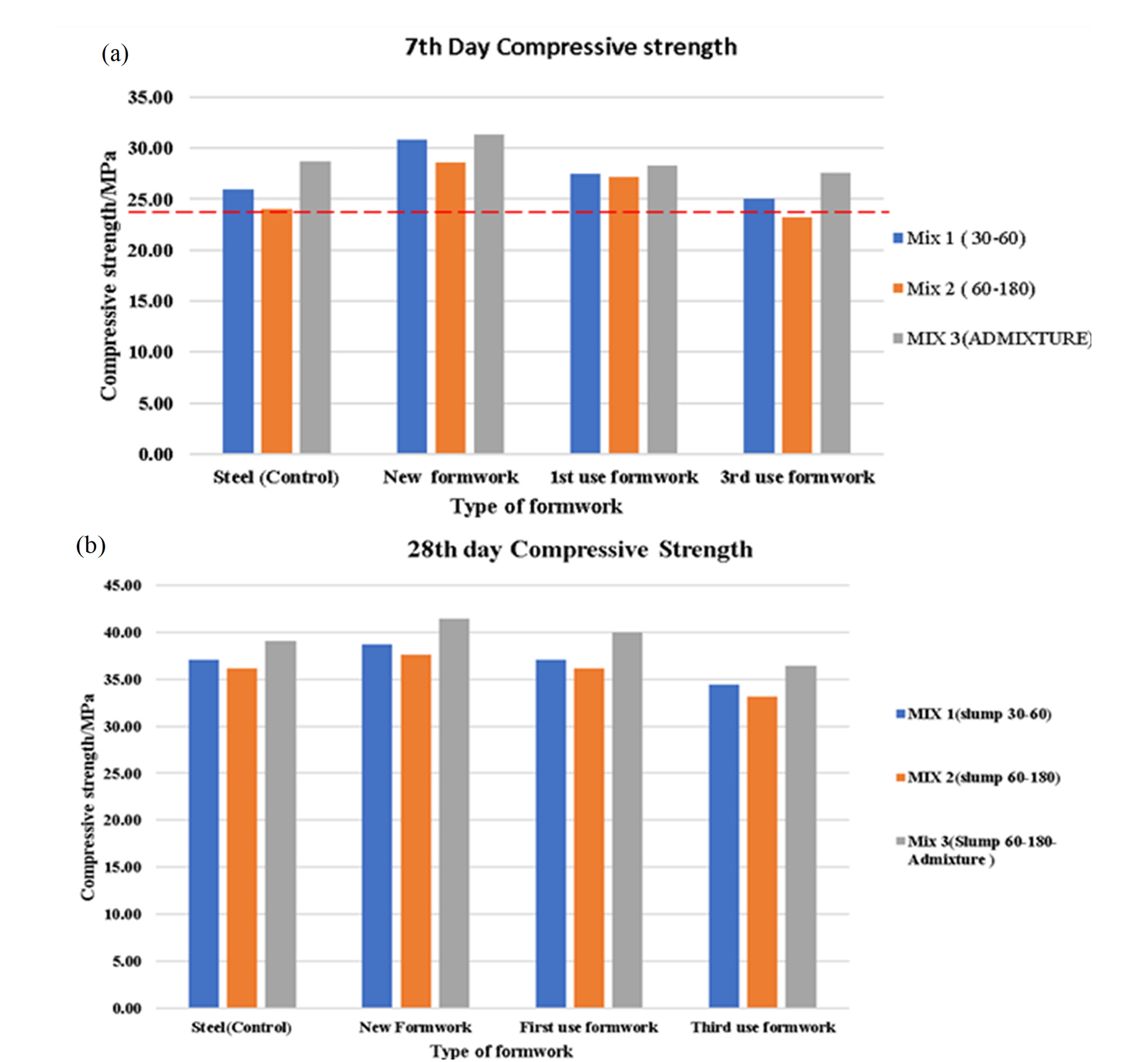

Figure 3.(a) 7^th day compressive strength, (b) 28th day compressive strength.

For the 7th day, the compressive strength should have reached two-thirds of its designed strength, as stated by (Weru, 2018). From the graph above, it can be observed that only the combination of Mix 2 and the third use of formwork failed to achieve this target. Testing for the 28th day compressive strength indicated that concrete cubes cast in formwork, already used once, performed satisfactorily.

However, for the formwork already used thrice, both Mixes 1 and 2 cubes failed to achieve the targeted strength. This can be explained by the changes in the formwork surface caused by the successive pouring-hardening-demoulding cycles that lead to the adherence of cement paste to the surface and thus clogging of pores, protrusions, and raising of fibres (Jiang et al., 2025). Moreover, this also leads to greater friction during demoulding, which can create microcracks in the concrete. However, the cubes made use of the admixture to meet the design characteristic strength of 35MPa. This can be explained by the reduced water content in this mix, which helped to mitigate the negative effects due to the degradation of the formwork as a result of several uses. This constitutes an important finding as it shows the efficiency of the admixture in achieving the required target strength while also demonstrating the need to shift from the usual procedure of increasing concrete workability through the addition of water in the mixture, as this is incompatible with circular formwork reuse.

3.2. Water absorption

The results shown in Figure 4 indicate that the water content in the concrete design mix has an effect on the water absorption of concrete for all the types of formwork considered. Mix 1 produced concrete with lower water absorption compared to Mix 2 for all formwork categories. However, Mix 3 with admixture use and reduced water content yielded the lowest water absorption for all formwork categories. Moreover, for the third use of formwork, the water absorption was in a similar range to that of the steel moulds, while those for new and first-time formwork had lower water absorption.

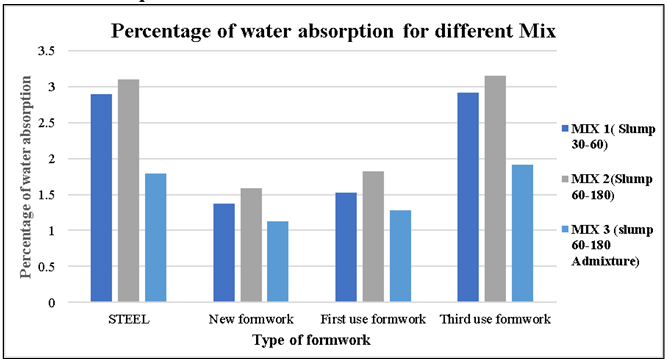

Figure 4.Water absorption of concrete specimens.

3.3. Chloride ion content

Figure 5, Figure 6, and Figure 7 indicate that the chlorine content decreased with increasing depth for all mixes. New formwork was seen to consistently produce concrete with the lowest chlorine ingress content, followed by first use and then third use, due to the ability of new formwork to absorb water from the mix, allowing concrete to have a lower w/c ratio. Mix 3 and new formwork produce the concrete with less chloride ion ingress due to the combined effect of a lower w/c ratio and the reduced voids, as shown in Figure 8. Mix 2 and third use formwork (at a depth of 30-50mm) was observed to produce the highest chloride content in the concrete due to the increased voids, as shown in Figure 8. This is particularly a concerning factor as reinforcements are usually placed at this depth for structural elements. Lastly, it was noted that for Mix 3, the chloride levels were maintained within the corrosion threshold of 30 – 50mm for the various types of formwork used, whereas for Mix 2, this was not achieved for the third-use formwork.

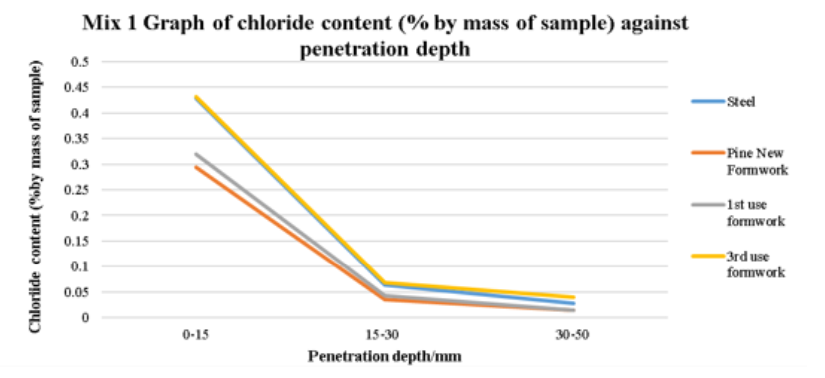

Figure 5.Chloride content for Mix 1.

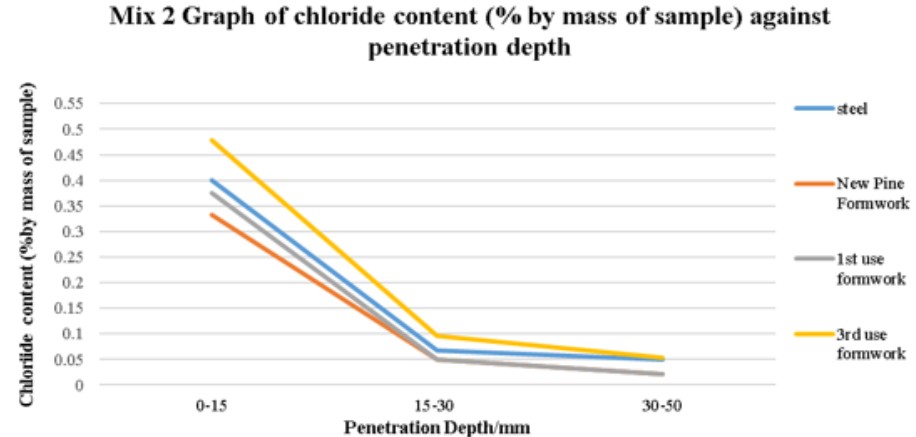

Figure 6.Chloride content for Mix 2.

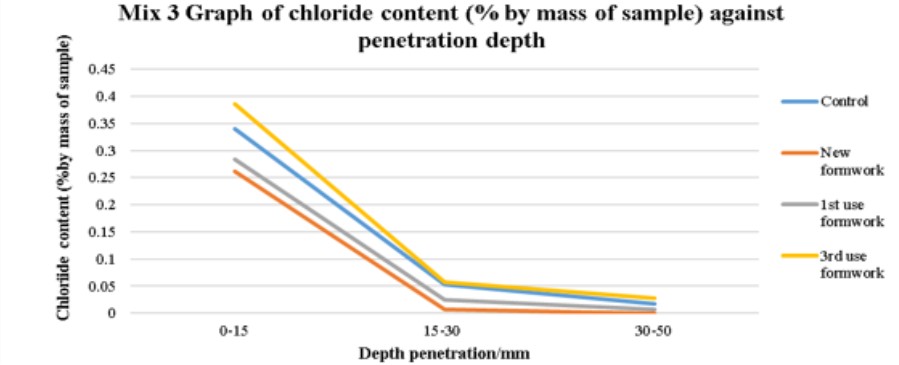

Figure 7.Chloride content for Mix 3.

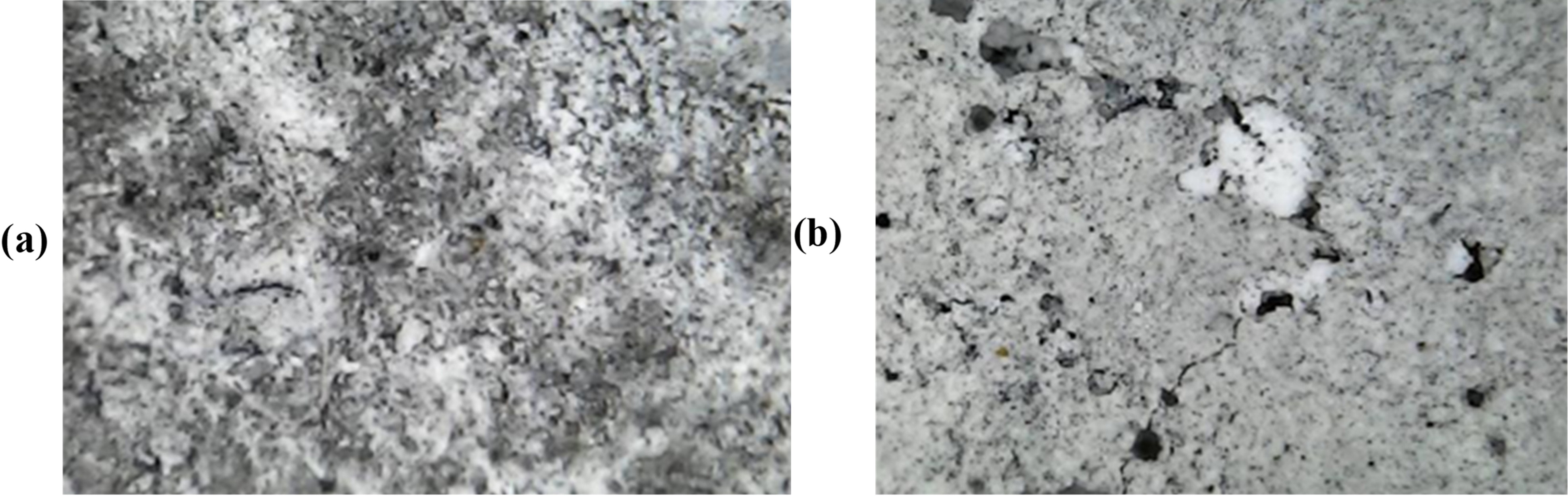

Figure 8.(a) Concrete from mix 3 and new formwork, (b) Concrete from mix 2 and 3^rd use formwork.

4. Discussion

The study set out to assess the impacts of slump variation (through water-to-cement ratio variation and admixture use) and softwood formwork reuse on the properties of hardened concrete. Findings for new formwork, formwork used once, and thrice were compared with the control in the form of steel formwork to assess the suitability of timber formwork reuse for concrete construction. The main limitation of this research was the number of replications for each mix type and formwork, with only 3 similar tests carried out for each scenario. However, possible errors due to this shortcoming have been curtailed by adopting stringent quality control procedures as recommended by the relevant British Standards. Moreover, only pine formwork has been investigated in this study, and this can be further expanded to other types of timber used as formwork in the construction industry.

In terms of compressive strength, positive results were obtained for formwork used once for all mixes, with no significant decrease compared to results obtained for new timber formwork. This may be explained by the fact that the voids in the formwork have not been blocked significantly and still allow water to be absorbed (Dapper et al., 2024). However, for softwood formwork, which had already been used thrice, only the mix using admixture performed satisfactorily due to the reduction in water-to-cement ratio. The findings indicate that while softwood formwork may be reused at least once, more care needs to be exercised when considering reuse more than two times, as the degradation in formwork may lead to lower compressive strength. However, the use of water-reducing admixtures may help to overcome this issue and thus allow further reuse of softwood formwork.

In terms of water absorption, it was noted that the lower the initial water content, the less the water absorption of the concrete specimens for normal mixes, in line with previous studies ((Piasta & Zarzycki, 2017); (Yang et al., 2024)). However, the mix with the admixture outperformed the others and yielded the lowest water absorption for all formwork categories. This is in line with findings from (Lokesh et al., 2023), who found that the use of water-reducing admixtures helps to reduce the number of cracks by minimising water loss from the concrete. This is particularly crucial for this study as it shows that the concrete produced with used softwood formwork performs satisfactorily in terms of water absorption when combined with water-reducing admixtures.

Lastly, results indicated that new softwood formwork produced concrete with the lowest chlorine ingress content, followed by first use and then third use, due to the decreasing ability of formwork to absorb water from the mix with the number of reuses. Moreover, Mix 3 with the admixture and new formwork yielded the best results with the lowest chloride ion ingress. Finally, to ensure circularity, once the pine has reached its end-of-life for formwork use, it can be repurposed through chipping for secondary applications in various domains, such as providing soft surfaces in walking trails and for weed control in landscaped areas.

While the results have shown the potential for pine formwork reuse, further research, however, needs to be carried out in terms of quantifying the circularity potential in terms of measurable indicators such as onsite waste reduction, decrease in the costs of formwork, percentage of formwork that is being repurposed, and reduction in environmental impacts. These findings can help to promote a wider adoption of circular economy principles in the construction sector.

5. Conclusion

The findings of this study have addressed the research question set at the beginning of this study by elucidating the impacts of combined reuse of softwood formwork and varying workability on important properties of hardened concrete. Useful insights have been obtained on the potential of admixtures to improve the characteristics of concrete being cast in softwood formwork that had been previously used. The results have shown that pine softwood formwork can be safely reused once for concrete construction, but more care should be exercised if the formwork is being reused more than once. However, the use of water reducers has shown great potential to mitigate the negative effects on the properties of concrete in terms of compressive strength, water absorption, and chloride ion ingress, with concrete specimens performing satisfactorily even for formwork having been used thrice. This may be particularly useful when carrying out concrete works with marine exposure, which is frequent in Small Island Developing States like Mauritius. By highlighting the strategic use of water reducers to mitigate the adverse effects of reuse formwork, this study has also offered encouragement for greater adoption of the practice of reuse of softwood formwork, inducing a reduction in waste and carbon footprint, thus contributing to promoting environmentally friendly practices.

Acknowledgments

The abstract of this paper was presented at the 5th International Conference on Climate Change and Environmental Sustainability (CCES), which was held from the 5th to the 7th of October 2025.

Funding declaration

This research did not receive any specific grant from funding agencies in the public, commercial, or not-for-profit sectors/individuals.

Ethics approval

Not applicable.

Conflict of interest

The authors declare that there is no competing interest.

References

Abuimara T., Haddad M., Aldhaheri A., Alzubaidi M., Alyafei M., Alderei R.. House of the Future: Designing a Net-Zero Energy Housing Archetype for Emirati Families. Environmental Science & Sustainable Development. 2025; 10(3):67-80. DOI
Ahmad J., Arbili M.M., Majdi A., Althoey F., Deifalla F.A., Rahmawati C.. Performance of concrete reinforced with jute fibers (natural fibers): A review. Journal of Engineered Fibers and Fabrics. 2022; 17DOI
Aïssoun B.M., Gallias J.-L., Khayat K.H.. Influence of formwork material on transport properties of self-consolidating concrete near formed surfaces. Construction and Building Materials. 2017; 146:329-337. DOI
Akanbi L.A., Oyedele L.O., Akinade O.O., Ajayi A.O., Davila Delgado M., Bilal M., Bello S.A.. Salvaging building materials in a circular economy: A BIM-based whole-life performance estimator. Resources, Conservation and Recycling. 2018; 129:175-186. DOI
Akhimien N.G., Latif E., Hou S.S.. Application of circular economy principles in buildings: A systematic review. Journal of Building Engineering. 2021; 38DOI
Altun M.G., Özen S., Mardani-Aghabaglou A.. Effect of side chain length change of polycarboxylate-ether-based high-range water-reducing admixture on properties of self-compacting concrete. Construction and Building Materials. 2020; 246DOI
Institution British Standards. Testing concrete: Part 125: Methods for mixing and sampling fresh concrete in the laboratory. 1983.
Institution British Standards. UK: British Standards Institution; 1983.
Institution British Standards. Testing concrete: Part 122: Method for determination of water absorption. 1983.
Institution British Standards. Testing concrete: Part 124: Method for determination of chloride content. 1988.
Institution British Standards. UK: British Standards Institution; 2019.
Establishment Building Research. Construction Research Communications Ltd: London; 1988.
Bukhari S.J.S., Khanzadeh Moradllo M.. Multicriteria performance assessment of ‘low w/c + low cement + high dosage admixture’ Concrete: Environmental, economic, durability, and mechanical performance considerations. Journal of Cleaner Production. 2025; 523DOI
Charef R., Lu W., Hall D.. The transition to the circular economy of the construction industry: Insights into sustainable approaches to improve the understanding. Journal of Cleaner Production. 2022; 364DOI
Cheng B., Huang J., Lu K., Li J., Gao G., Wang T., Chen H.. BIM-enabled life cycle assessment of concrete formwork waste reduction through prefabrication. Sustainable Energy Technologies and Assessments. 2022; 53DOI
Dapper S.T.H., Bersch J.D., Masuero A.B.. Impact of Formwork Materials on Concrete Surface Quality. Buildings. 2024; 14(11)DOI
Das R., Bhattacharya I., Saha R.. Comparative study between different types of formwork. International Research Journal of Advanced Engineering and Science. 2016; 1(4):173-175.
Souza Barros D., Lima M.D.R., Massuque J., Santos E.V., Guirardi B.D., Dias Junior A.F., Bufalino L., Silveira E.A., Carneiro A.de C.O., Trugilho P.F., Paula Protásio T.. Advancing circular economy in Amazonian forest management: A comparative study of the effects of wood waste segregation and traditional carbonization on charcoal properties, combustibility, and spontaneous combustion risk. Circular Economy. 2025; 4(3)DOI
Demissew A.. Comparative Analysis of Selected Concrete Mix Design Methods Based on Cost-Effectiveness. Advances in Civil Engineering. 2022; 2022(1)DOI
Devi K., Yadav T.. Cost Comparison of Different Types of Formworks. Journal of Building Material Science. 2023; 5(1):32-38. DOI
Gappmaier P., Reichenbach S., Kromoser B.. Advances in formwork automation, structure, and materials in concrete construction. Automation in Construction. 2024; 162DOI
Geldermans R.J.. Design for Change and Circularity – Accommodating Circular Material & Product Flows in Construction. Energy Procedia. 2016; 96:301-311. DOI
Guerra B.C., Leite F.. Circular economy in the construction industry: An overview of United States stakeholders’ awareness, major challenges, and enablers. Resources, Conservation and Recycling. 2021; 170DOI
Jiang Q., Yu C., Zhou M.. Aesthetic properties of concrete surfaces: An experimental study employing three typical formworks with emphasis on reusability. Case Studies in Construction Materials. 2025; 22DOI
Khalfan M.. Lessons Learned from the First Passivhaus Building in Qatar. Environmental Science & Sustainable Development. 2019; 4(3):77-91. DOI
Li W., Lin X., Bao D.W., Min Xie Y.. A review of formwork systems for modern concrete construction. Structures. 2022; 38:52-63. DOI
Liebringshausen A., Eversmann P., Göbert A.. Circular, zero-waste formwork—Sustainable and reusable systems for complex concrete elements. Journal of Building Engineering. 2023; 80DOI
Lokesh G., Nantha Kumar P., Aishwarya N., Parthiban P., Ponshanmugakumar A.. Experimental study of the effect of water-reducing admixtures on concrete. Materials Today: Proceedings. 2023. DOI
Mei Z., Xu M., Luo S., Tan Y., Li H.. Concrete formwork reuse in a supply chain with dynamic changes using ABMS and discrete events. Journal of Cleaner Production. 2022; 332DOI
Mukhopadhyay B., Bose R., Roy S.. Smart and Sustainable Technologies: Rural and Tribal Development Using IoT and Cloud Computing. Advances in Sustainability Science and Technology. Springer: Singapore; 2022. DOI
Neville A.M.. Pitman Publishing; 2017.
Nilimaa J., Gamil Y., Zhaka V.. Formwork Engineering for Sustainable Concrete Construction. CivilEng. 2023; 4(4):1098-1120. DOI
Piasta W., Zarzycki B.. The effect of cement paste volume and w/c ratio on shrinkage strain, water absorption, and compressive strength of high-performance concrete. Construction and Building Materials. 2017; 140:395-402. DOI
Pronk A., Brancart S., Sanders F.. Reusing Timber Formwork in Building Construction: Testing, Redesign, and Socio-Economic Reflection. Urban Planning. 2022; 7(2):81-96. DOI
Rubaratuka I.A.. Influence of formwork materials on the surface quality of reinforced concrete structures. International Journal of Engineering and Applied Sciences. 2013; 4(5)Publisher Full Text
Shkirman K., Stoppato A., Giussani F., Pezzutto S.. Investigating circularity in the construction and demolition sector through remote sensing: A case study of Bolzano/Bozen, Italy. Circular Economy. 2025; 4(3)DOI
Terzioglu T., Polat G., Turkoglu H.. Analysis of Formwork System Selection Criteria for Building Construction Projects: A Comparative Study. Buildings. 2021; 11(12)DOI
Weru J.. Why 28 days of concrete compressive strength? LinkedIn. 2018. Publisher Full Text
Xu Y., Liu S., Heisel F.. Towards sustainable construction waste management: Study on a disassemblable brick partition wall for the architecture, construction, and engineering industry. Circular Economy. 2024; 3(1)DOI
Yang J., Zhao H., Zeng J., Su Y., Zhu M.. The Influence of Chemical Admixtures on the Fluidity, Viscosity, and Rheological Properties of Ultra-High Performance Concrete. Fluid Dynamics & Materials Processing. 2024; 20(10):2163-2181. DOI
Yang L., Liu G., Gao D., Zhang C.. Experimental study on water absorption of unsaturated concrete: W/c ratio, coarse aggregate, and saturation degree. Construction and Building Materials. 2021; 272DOI
Zeng S., Tanveer A., Fu X., Gu Y., Irfan M.. Modeling the influence of critical factors on the adoption of green energy technologies. Renewable and Sustainable Energy Reviews. 2022; 168DOI
Zhang Y.. Study on Microstructure and Rheological Properties of Cement-Chemical Admixtures-Water Dispersion System at Early Stage. Springer Theses. Springer: Singapore; 2018. DOI

Plum Analytics

Read Counter : 30 Download : 24

Share Now

[BIBR-1] Abuimara T., Haddad M., Aldhaheri A., Alzubaidi M., Alyafei M., Alderei R.. House of the Future: Designing a Net-Zero Energy Housing Archetype for Emirati Families. Environmental Science & Sustainable Development. 2025; 10(3):67-80. DOI

[BIBR-2] Ahmad J., Arbili M.M., Majdi A., Althoey F., Deifalla F.A., Rahmawati C.. Performance of concrete reinforced with jute fibers (natural fibers): A review. Journal of Engineered Fibers and Fabrics. 2022; 17DOI

[BIBR-3] Aïssoun B.M., Gallias J.-L., Khayat K.H.. Influence of formwork material on transport properties of self-consolidating concrete near formed surfaces. Construction and Building Materials. 2017; 146:329-337. DOI

[BIBR-4] Akanbi L.A., Oyedele L.O., Akinade O.O., Ajayi A.O., Davila Delgado M., Bilal M., Bello S.A.. Salvaging building materials in a circular economy: A BIM-based whole-life performance estimator. Resources, Conservation and Recycling. 2018; 129:175-186. DOI

[BIBR-5] Akhimien N.G., Latif E., Hou S.S.. Application of circular economy principles in buildings: A systematic review. Journal of Building Engineering. 2021; 38DOI

[BIBR-6] Altun M.G., Özen S., Mardani-Aghabaglou A.. Effect of side chain length change of polycarboxylate-ether-based high-range water-reducing admixture on properties of self-compacting concrete. Construction and Building Materials. 2020; 246DOI

[BIBR-7] Institution British Standards. Testing concrete: Part 125: Methods for mixing and sampling fresh concrete in the laboratory. 1983.

[BIBR-8] Institution British Standards. UK: British Standards Institution; 1983.

[BIBR-9] Institution British Standards. Testing concrete: Part 122: Method for determination of water absorption. 1983.

[BIBR-10] Institution British Standards. Testing concrete: Part 124: Method for determination of chloride content. 1988.

[BIBR-11] Institution British Standards. UK: British Standards Institution; 2019.

[BIBR-12] Establishment Building Research. Construction Research Communications Ltd: London; 1988.

[BIBR-13] Bukhari S.J.S., Khanzadeh Moradllo M.. Multicriteria performance assessment of ‘low w/c + low cement + high dosage admixture’ Concrete: Environmental, economic, durability, and mechanical performance considerations. Journal of Cleaner Production. 2025; 523DOI

[BIBR-14] Charef R., Lu W., Hall D.. The transition to the circular economy of the construction industry: Insights into sustainable approaches to improve the understanding. Journal of Cleaner Production. 2022; 364DOI

[BIBR-15] Cheng B., Huang J., Lu K., Li J., Gao G., Wang T., Chen H.. BIM-enabled life cycle assessment of concrete formwork waste reduction through prefabrication. Sustainable Energy Technologies and Assessments. 2022; 53DOI

[BIBR-16] Dapper S.T.H., Bersch J.D., Masuero A.B.. Impact of Formwork Materials on Concrete Surface Quality. Buildings. 2024; 14(11)DOI

[BIBR-17] Das R., Bhattacharya I., Saha R.. Comparative study between different types of formwork. International Research Journal of Advanced Engineering and Science. 2016; 1(4):173-175.

[BIBR-18] Souza Barros D., Lima M.D.R., Massuque J., Santos E.V., Guirardi B.D., Dias Junior A.F., Bufalino L., Silveira E.A., Carneiro A.de C.O., Trugilho P.F., Paula Protásio T.. Advancing circular economy in Amazonian forest management: A comparative study of the effects of wood waste segregation and traditional carbonization on charcoal properties, combustibility, and spontaneous combustion risk. Circular Economy. 2025; 4(3)DOI

[BIBR-19] Demissew A.. Comparative Analysis of Selected Concrete Mix Design Methods Based on Cost-Effectiveness. Advances in Civil Engineering. 2022; 2022(1)DOI

[BIBR-20] Devi K., Yadav T.. Cost Comparison of Different Types of Formworks. Journal of Building Material Science. 2023; 5(1):32-38. DOI

[BIBR-21] Gappmaier P., Reichenbach S., Kromoser B.. Advances in formwork automation, structure, and materials in concrete construction. Automation in Construction. 2024; 162DOI

[BIBR-22] Geldermans R.J.. Design for Change and Circularity – Accommodating Circular Material & Product Flows in Construction. Energy Procedia. 2016; 96:301-311. DOI

[BIBR-23] Guerra B.C., Leite F.. Circular economy in the construction industry: An overview of United States stakeholders’ awareness, major challenges, and enablers. Resources, Conservation and Recycling. 2021; 170DOI

[BIBR-24] Jiang Q., Yu C., Zhou M.. Aesthetic properties of concrete surfaces: An experimental study employing three typical formworks with emphasis on reusability. Case Studies in Construction Materials. 2025; 22DOI

[BIBR-25] Khalfan M.. Lessons Learned from the First Passivhaus Building in Qatar. Environmental Science & Sustainable Development. 2019; 4(3):77-91. DOI

[BIBR-26] Li W., Lin X., Bao D.W., Min Xie Y.. A review of formwork systems for modern concrete construction. Structures. 2022; 38:52-63. DOI

[BIBR-27] Liebringshausen A., Eversmann P., Göbert A.. Circular, zero-waste formwork—Sustainable and reusable systems for complex concrete elements. Journal of Building Engineering. 2023; 80DOI

[BIBR-28] Lokesh G., Nantha Kumar P., Aishwarya N., Parthiban P., Ponshanmugakumar A.. Experimental study of the effect of water-reducing admixtures on concrete. Materials Today: Proceedings. 2023. DOI

[BIBR-29] Mei Z., Xu M., Luo S., Tan Y., Li H.. Concrete formwork reuse in a supply chain with dynamic changes using ABMS and discrete events. Journal of Cleaner Production. 2022; 332DOI

[BIBR-30] Mukhopadhyay B., Bose R., Roy S.. Smart and Sustainable Technologies: Rural and Tribal Development Using IoT and Cloud Computing. Advances in Sustainability Science and Technology. Springer: Singapore; 2022. DOI

[BIBR-31] Neville A.M.. Pitman Publishing; 2017.

[BIBR-32] Nilimaa J., Gamil Y., Zhaka V.. Formwork Engineering for Sustainable Concrete Construction. CivilEng. 2023; 4(4):1098-1120. DOI

[BIBR-33] Piasta W., Zarzycki B.. The effect of cement paste volume and w/c ratio on shrinkage strain, water absorption, and compressive strength of high-performance concrete. Construction and Building Materials. 2017; 140:395-402. DOI

[BIBR-34] Pronk A., Brancart S., Sanders F.. Reusing Timber Formwork in Building Construction: Testing, Redesign, and Socio-Economic Reflection. Urban Planning. 2022; 7(2):81-96. DOI

[BIBR-35] Rubaratuka I.A.. Influence of formwork materials on the surface quality of reinforced concrete structures. International Journal of Engineering and Applied Sciences. 2013; 4(5)Publisher Full Text

[BIBR-36] Shkirman K., Stoppato A., Giussani F., Pezzutto S.. Investigating circularity in the construction and demolition sector through remote sensing: A case study of Bolzano/Bozen, Italy. Circular Economy. 2025; 4(3)DOI

[BIBR-37] Terzioglu T., Polat G., Turkoglu H.. Analysis of Formwork System Selection Criteria for Building Construction Projects: A Comparative Study. Buildings. 2021; 11(12)DOI

[BIBR-38] Weru J.. Why 28 days of concrete compressive strength? LinkedIn. 2018. Publisher Full Text

[BIBR-39] Xu Y., Liu S., Heisel F.. Towards sustainable construction waste management: Study on a disassemblable brick partition wall for the architecture, construction, and engineering industry. Circular Economy. 2024; 3(1)DOI

[BIBR-40] Yang J., Zhao H., Zeng J., Su Y., Zhu M.. The Influence of Chemical Admixtures on the Fluidity, Viscosity, and Rheological Properties of Ultra-High Performance Concrete. Fluid Dynamics & Materials Processing. 2024; 20(10):2163-2181. DOI

[BIBR-41] Yang L., Liu G., Gao D., Zhang C.. Experimental study on water absorption of unsaturated concrete: W/c ratio, coarse aggregate, and saturation degree. Construction and Building Materials. 2021; 272DOI

[BIBR-42] Zeng S., Tanveer A., Fu X., Gu Y., Irfan M.. Modeling the influence of critical factors on the adoption of green energy technologies. Renewable and Sustainable Energy Reviews. 2022; 168DOI

[BIBR-43] Zhang Y.. Study on Microstructure and Rheological Properties of Cement-Chemical Admixtures-Water Dispersion System at Early Stage. Springer Theses. Springer: Singapore; 2018. DOI

Circularity in Concrete Construction Investigating the Interplay Between Multiple Softwood Formwork Reuse and Varying Workability on Hardened Concrete Properties

Abstract

Full text article

References

Authors

Address

Social Media

Article Sidebar

Abstract

Full text article

References

Authors

Article Details
